UF15P Series

Catalog

FN 172X150X51MM 230V IP55 SLT FG

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Approval Agency	Width [x]	Power (Watts)	Ingress Protection	Bearing Type	Weight	Weight	Noise	Features	RPM	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Voltage - Rated	Fan Type	Termination	Termination

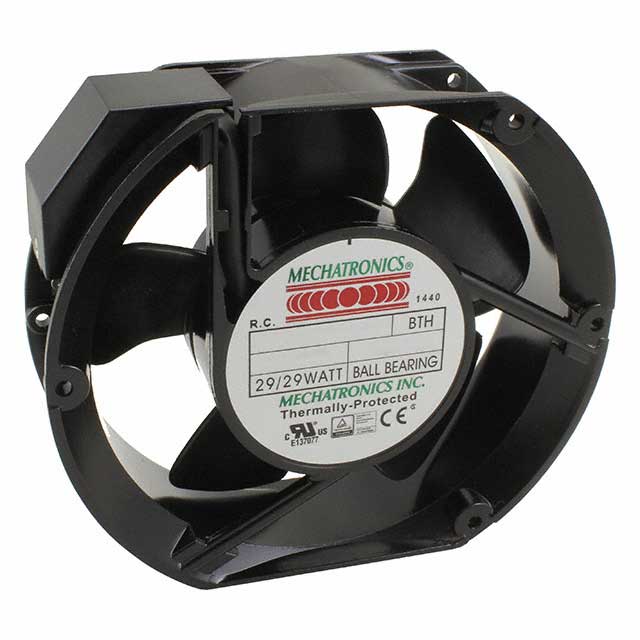

Mechatronics Fan Group UF15PC23-BTHNSR	120 mA	Aluminum	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	51 mm	31 W	IP55 - Dust Protected Water Resistant	Ball	1.8 lbs	816.5 g	58 dB(A)	Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP)	3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	230 VAC	Tubeaxial	2
Mechatronics Fan Group UF15PE23-BWHR	120 mA	Aluminum		CE TUV	51 mm			Ball	1.8 lbs	816.5 g	58 dB(A)		3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	230 VAC	Tubeaxial		2 Wire Leads

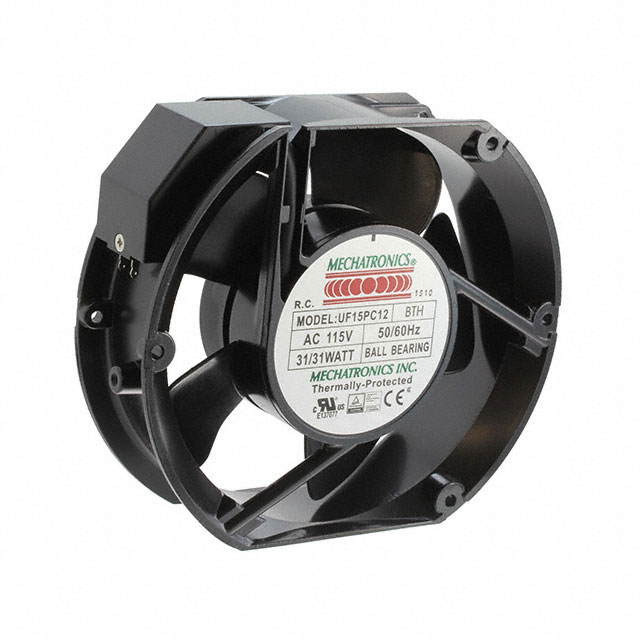

Mechatronics Fan Group UF15PC12-BTHR-CC	0.25 A	Aluminum	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	51 mm	31 W		Ball	1.8 lbs	816.5 g	58 dB(A)	Conformal Coating Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	115 VAC	Tubeaxial	2
Mechatronics Fan Group UF15P12-BTHR	0.25 A	Aluminum	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	51 mm	31 W		Ball	1.8 lbs	816.5 g	58 dB(A)		3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	115 VAC	Tubeaxial	2
Mechatronics Fan Group UF15PC23-BTHR-CC	120 mA	Aluminum	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	51 mm	31 W		Ball	1.8 lbs	816.5 g	58 dB(A)	Conformal Coating Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	230 VAC	Tubeaxial	2
Mechatronics Fan Group UF15PC12-BTHNR	0.25 A	Aluminum	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	51 mm	31 W	IP55 - Dust Protected Water Resistant	Ball	1.8 lbs	816.5 g	58 dB(A)	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	115 VAC	Tubeaxial	2
Mechatronics Fan Group UF15PC12-BTMR		Aluminum	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	51 mm			Ball	1.8 lbs	816.5 g		Permanent Split Capacitor Motor Thermal Overload Protector (TOP)				Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C			115 VAC	Tubeaxial	2
Mechatronics Fan Group UF15PC23-BWHNSR	120 mA	Aluminum	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	51 mm	31 W	IP55 - Dust Protected Water Resistant	Ball	1.8 lbs	816.5 g	58 dB(A)	Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP)	3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	230 VAC	Tubeaxial		2 Wire Leads
Mechatronics Fan Group UF15PC12-BTHNSR	0.25 A	Aluminum	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	51 mm	31 W	IP55 - Dust Protected Water Resistant	Ball	1.8 lbs	816.5 g	58 dB(A)	Permanent Split Capacitor Motor Salt Fog Rated Thermal Overload Protector (TOP)	3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	115 VAC	Tubeaxial	2
Mechatronics Fan Group UF15PE12-BWHR	0.25 A	Aluminum		CE TUV	51 mm			Ball	1.8 lbs	816.5 g	58 dB(A)		3400 RPM	196.8 Pa	0.79 in H2O	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	6.33 m³/min	226 CFM	115 VAC	Tubeaxial		2 Wire Leads
