APT12067 Series

Catalog

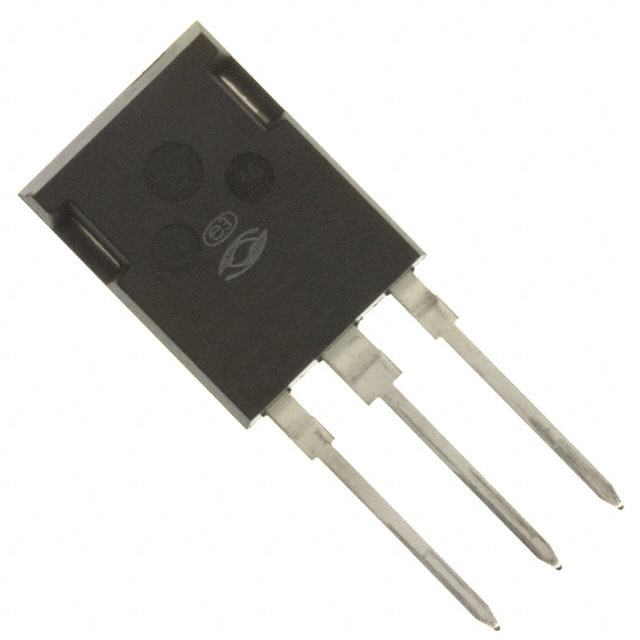

MOSFET N-CH 1200V 18A T-MAX

Part	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Supplier Device Package	Mounting Type	Vgs (Max)	Package / Case	FET Type
Microsemi Corporation APT12067B2LLG	18 A	10 V	565 W	670 mOhm	4420 pF	150 nC	1.2 kV	MOSFET (Metal Oxide)	150 °C	-55 °C	5 V	T-MAX™ [B2]	Through Hole	30 V	TO-247-3 Variant	N-Channel
