L6R36 Series

Catalog

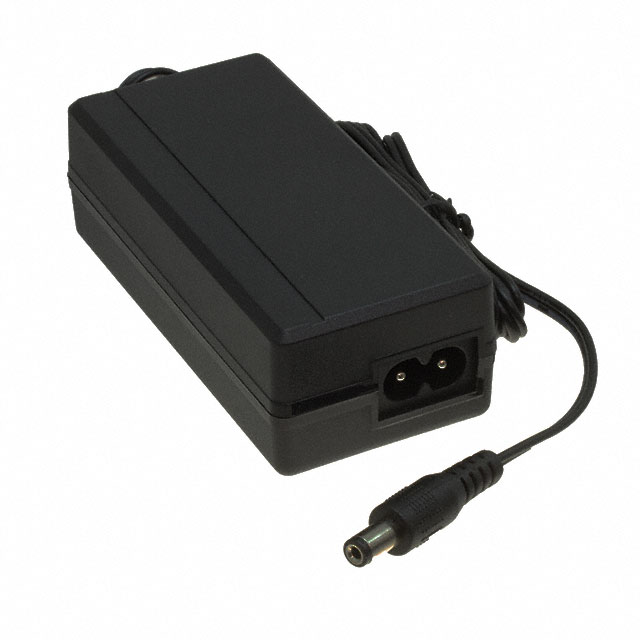

AC/DC DESKTOP ADAPTER 30V 36W

Part	Weight	Weight	Input Connector	Region Utilized	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Standard Number	Current - Output (Max) [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Efficiency	Voltage - Output	Power (Watts)	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Form	Input Type	Applications	Cord Length	Cord Length	Operating Temperature [Max]	Polarization	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)
Tri-Mag, LLC L6R36D-300-C8	0.529 lb	240 g	IEC 320-C8	International	3.82 in	1.77 in	97 mm	45 mm	35 mm	1.38 in	60950-1	1.2 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	30 V	36 W	100 mW	264 VAC	90 VAC	cUL FCC UL	Desktop (Class II)	Cord (Sold Separately)	ITE (Commercial)	1.5 m	59 in	40 °C

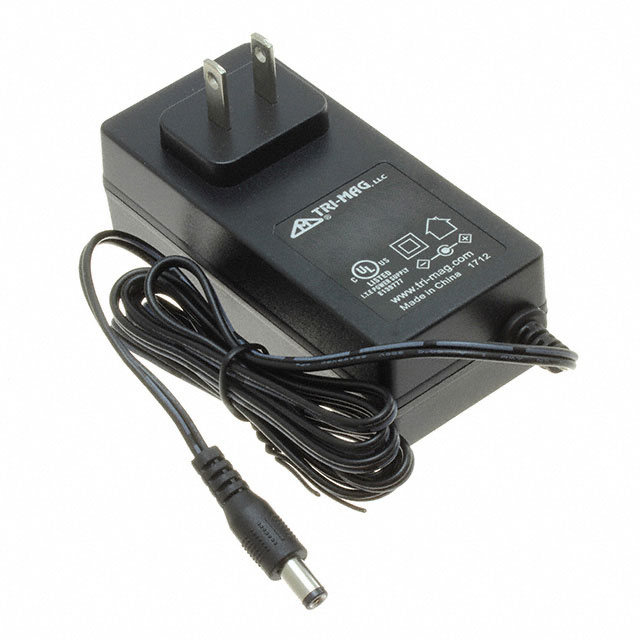

Tri-Mag, LLC L6R36-360			NEMA 1-15P	North America	3.82 in	1.77 in	97 mm	45 mm	38.6 mm	1.52 in	60950-1	1 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	36 V	36 W	100 mW	264 VAC	90 VAC	cUL FCC UL	Wall Mount	Fixed Blade	ITE (Commercial)	1.5 m	59 in	40 °C

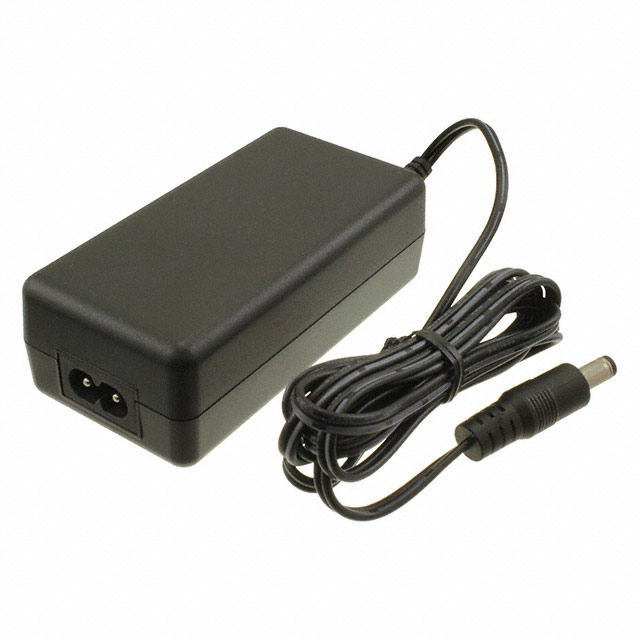

Tri-Mag, LLC L6R36DM-090-C8			IEC 320-C8	International			3.94 "	1.97 "	1.3 in		60601-1	4 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	9 V	36 W	150 mW	264 VAC	90 VAC	CE cULus EN FCC TUV	Desktop (Class II)	Cord (Sold Separately)	Medical	1.5 m	59 in	40 °C	Positive Center	50 mm	100.1 mm	33 mm
Tri-Mag, LLC L6R36D-120-C8	0.529 lb	240 g	IEC 320-C8	International	3.82 in	1.77 in	97 mm	45 mm	35 mm	1.38 in	60950-1	3 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	12 V	36 W	100 mW	264 VAC	90 VAC	cUL FCC UL	Desktop (Class II)	Cord (Sold Separately)	ITE (Commercial)	1.5 m	59 in	40 °C

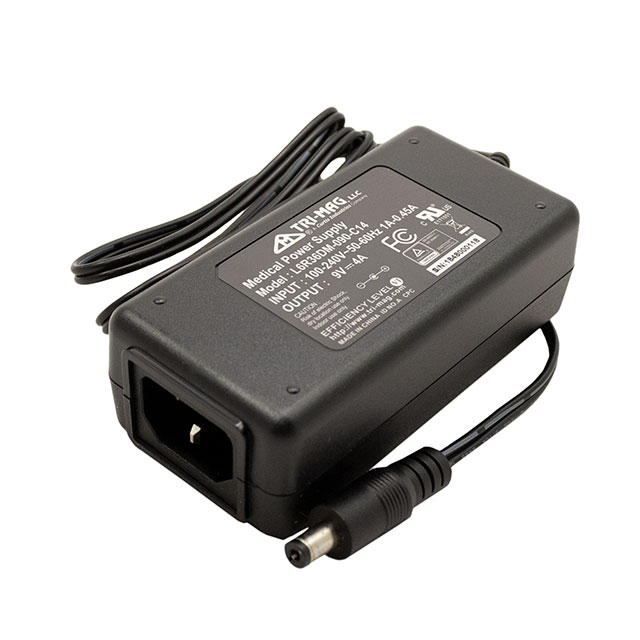

Tri-Mag, LLC L6R36DM-090-C14			IEC 320-C14	International			3.94 "	1.97 "	1.3 in		60601-1	4 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	9 V	36 W	150 mW	264 VAC	90 VAC	CE cULus EN FCC TUV	Desktop (Class I)	Cord (Sold Separately)	Medical	1.5 m	59 in	40 °C	Positive Center	50 mm	100.1 mm	33 mm

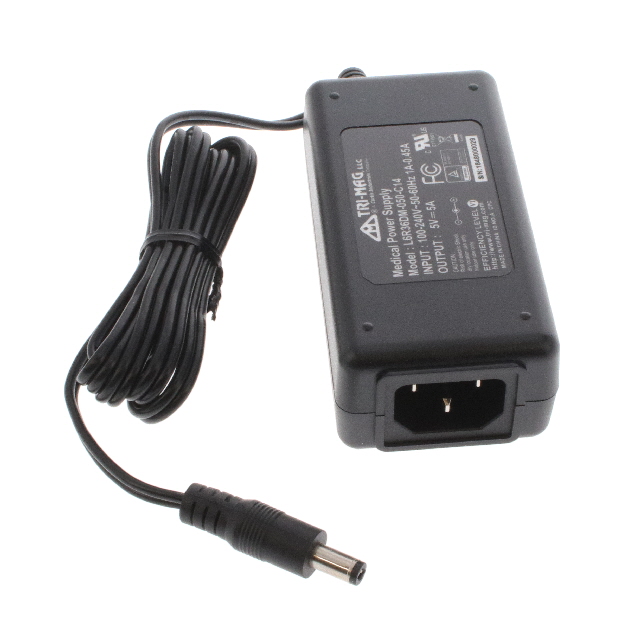

Tri-Mag, LLC L6R36DM-050-C14			IEC 320-C14	International			3.94 "	1.97 "	1.3 in		60601-1		Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	5 V	25 W	150 mW	264 VAC	90 VAC	CE cULus EN FCC TUV	Desktop (Class I)	Cord (Sold Separately)	Medical	1.5 m	59 in	40 °C	Positive Center	50 mm	100.1 mm	33 mm	5 A

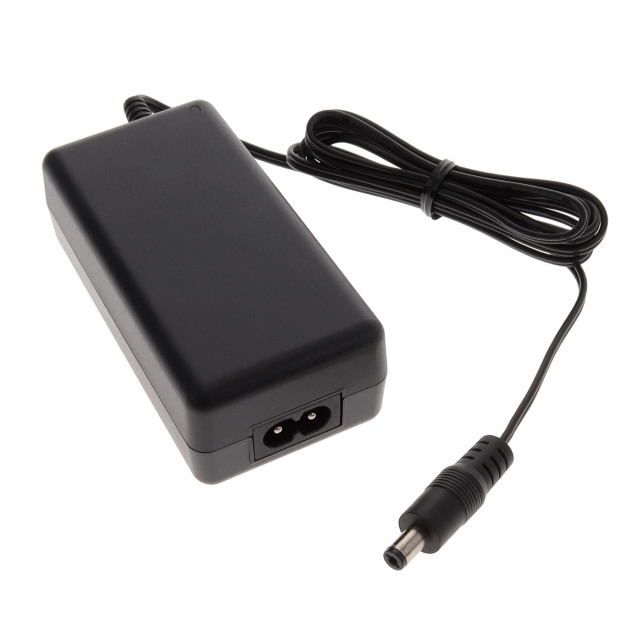

Tri-Mag, LLC L6R36DM-180-C8			IEC 320-C8	International			3.94 "	1.97 "	1.3 in		60601-1	2 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	18 V	36 W	150 mW	264 VAC	90 VAC	CE cULus EN FCC TUV	Desktop (Class II)	Cord (Sold Separately)	Medical	1.5 m	59 in	40 °C	Positive Center	50 mm	100.1 mm	33 mm
Tri-Mag, LLC L6R36-240			NEMA 1-15P	North America	3.82 in	1.77 in	97 mm	45 mm	38.6 mm	1.52 in	60950-1	1.5 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	24 V	36 W	100 mW	264 VAC	90 VAC	cUL FCC UL	Wall Mount	Fixed Blade	ITE (Commercial)	1.5 m	59 in	40 °C

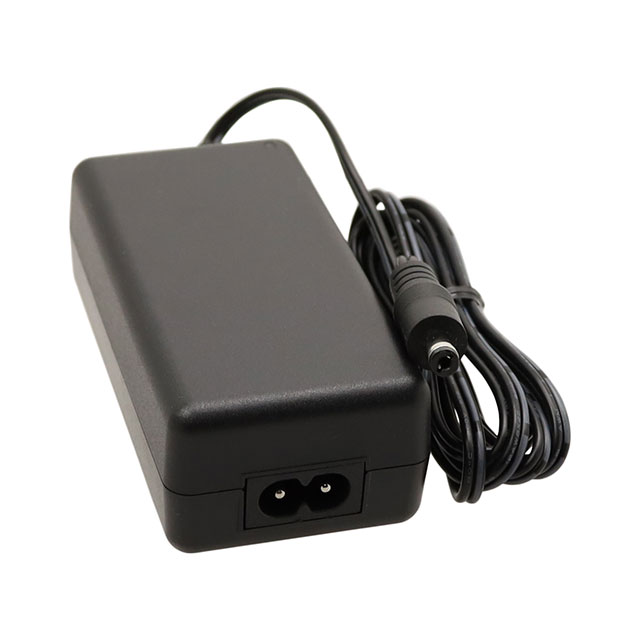

Tri-Mag, LLC L6R36DM-075-C8			IEC 320-C8	International			3.94 "	1.97 "	1.3 in		60601-1	4 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	7.5 V	30 Watts	150 mW	264 VAC	90 VAC	CE cULus EN FCC TUV	Desktop (Class II)	Cord (Sold Separately)	Medical	1.5 m	59 in	40 °C	Positive Center	50 mm	100.1 mm	33 mm
Tri-Mag, LLC L6R36D-360-C8	0.529 lb	240 g	IEC 320-C8	International	3.82 in	1.77 in	97 mm	45 mm	35 mm	1.38 in	60950-1	1 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	36 V	36 W	100 mW	264 VAC	90 VAC	cUL FCC UL	Desktop (Class II)	Cord (Sold Separately)	ITE (Commercial)	1.5 m	59 in	40 °C
