G60WCM-P Series
Manufacturer: ODU
Beta
⌘K

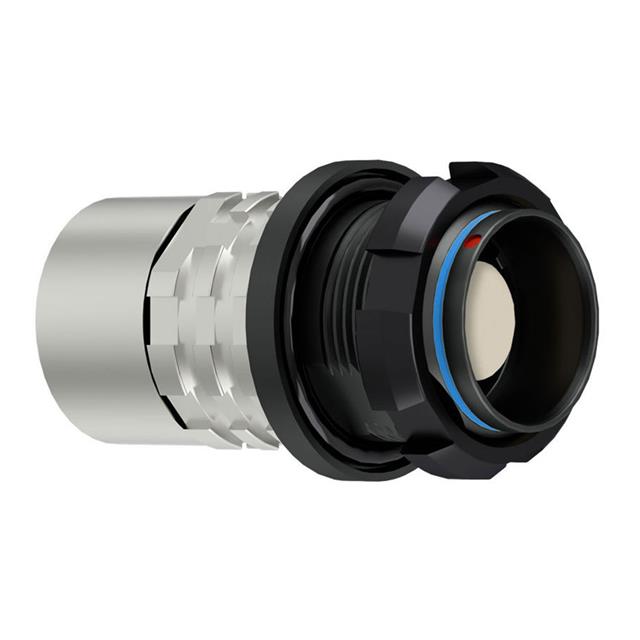

ODU AMC HD RECEPT, STY 6, SZ 0,
| Part | Ingress Protection | Applications | Fastening Type | Mounting Feature | Current Rating (Amps) | Contact Finish - Mating | Shielding | Connector Type | Cable Opening | Cable Opening | Primary Material | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [custom] | Insert Material | Number of Positions [custom] | Number of Positions [custom] | Mounting Type | Material Flammability Rating | Contact Material | Color | Shell Finish | Features | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP68 - Dust Tight Waterproof | Industrial Medical Military | Detent Lock Push-Pull | Bulkhead - Front Side Nut | 1 A 5 A | Gold | Shielded | Receptacle Female Sockets | 0.276 in | 7 mm | Metal | Brass | -51 °C | 125 °C | 0 | Polyetheretherketone (PEEK) | 2 | 10 | Panel Mount | UL94 V-0 | Copper Alloy | Black Silver | Ruthenium over Electroless Nickel | Backshell | C | 50 µin | 1.27 µm |
