MAX149 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

EVAL KIT FOR MAX14935

Part	Utilized IC / Part	Type	Supplied Contents	Function	Primary Attributes	Contents	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Data Interface	Reference Type	Supplier Device Package	Number of Inputs	Package / Case	Input Type	Mounting Type	Configuration	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Architecture	Ratio - S/H:ADC	Number of A/D Converters	Number of Bits [custom]
Analog Devices Inc./Maxim Integrated MAX14935DWEVKIT#	MAX14935	Interface	Board(s)	Digital Isolator	4-Channel (Quad)
Analog Devices Inc./Maxim Integrated MAX14935CWEVKIT#	MAX14935	Interface	Board(s)	Digital Isolator	4-Channel (Quad)
Analog Devices Inc./Maxim Integrated MAX14934AWEVKIT#	MAX14934	Interface	Board(s)	Digital Isolator	4-Channel (Quad)	Board(s)
Analog Devices Inc./Maxim Integrated MAX14930BSEVKIT#	MAX14930	Interface	Board(s)	Digital Isolator	4-Channel (Quad)
Analog Devices Inc./Maxim Integrated MAX149ACAP							70 °C	0 °C	2.7 V	5.25 V	SPI	External Internal	20-SSOP	4 8	20-SSOP	Differential Single Ended	Surface Mount	MUX-S/H-ADC	5.25 V	2.7 V	SAR	1:1	1	10
Analog Devices Inc./Maxim Integrated MAX149AEAP+
Analog Devices Inc./Maxim Integrated MAX149AEAP+T							85 °C	-40 °C	2.7 V	5.25 V	SPI	External Internal	20-SSOP	4 8	20-SSOP	Differential Single Ended	Surface Mount	MUX-S/H-ADC	5.25 V	2.7 V	SAR	1:1	1	10

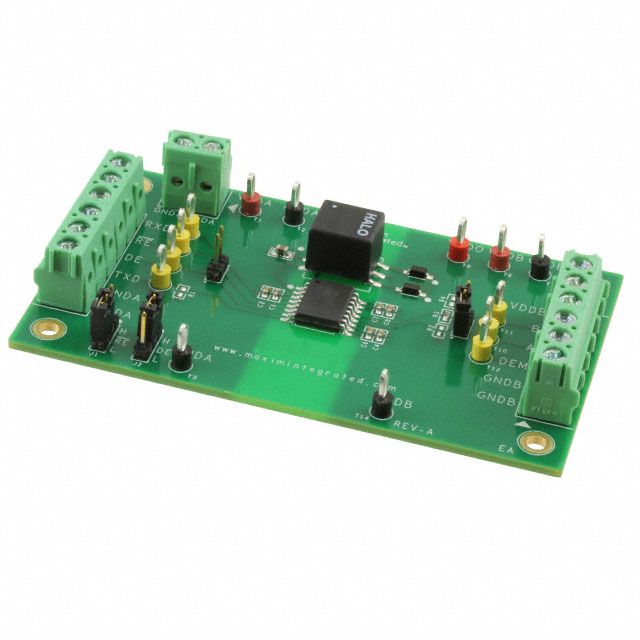

Analog Devices Inc./Maxim Integrated MAX149X2EVKIT#	MAX14940 MAX14943 MAX14946 MAX14949	Interface	Board(s)	RS-485 Transceiver	PROFIBUS RS-485 Transceiver	Board(s)

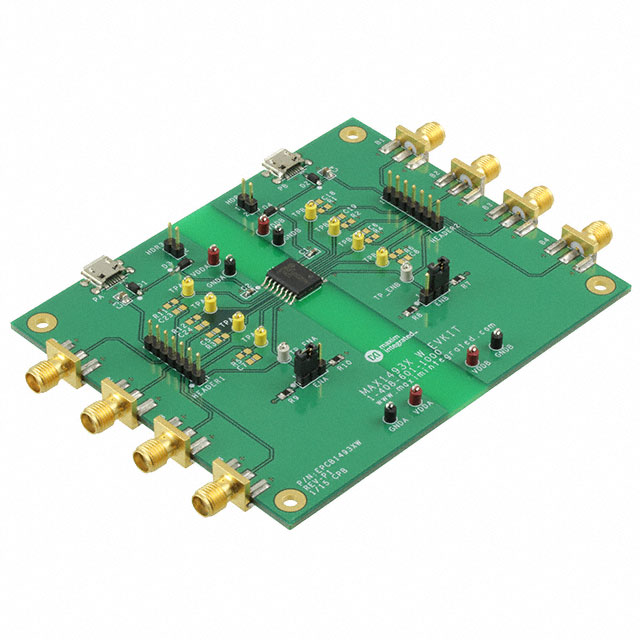

Analog Devices Inc./Maxim Integrated MAX14932EWEVKIT#	MAX14932	Interface	Board(s)	Digital Isolator	4-Channel (Quad)
Analog Devices Inc./Maxim Integrated MAX14931EWEVKIT#	MAX14931	Interface	Board(s)	Digital Isolator	4-Channel (Quad)
