OSTTJ12 Series

Catalog

TERM BLOCK PLUG 12POS STR 3.81MM

Part	Torque - Screw	Torque - Screw	Wire Strip Length [Max]	Wire Strip Length [Min]	Wire Gauge or Range - mm˛	Contact Material	Housing Material	Color	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Positions Per Level	Number of Positions	Termination Style	Mounting Type	Number of Levels	Voltage - UL	Wire Gauge or Range - mm²	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Material Flammability Rating	Contact Mating Finish	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

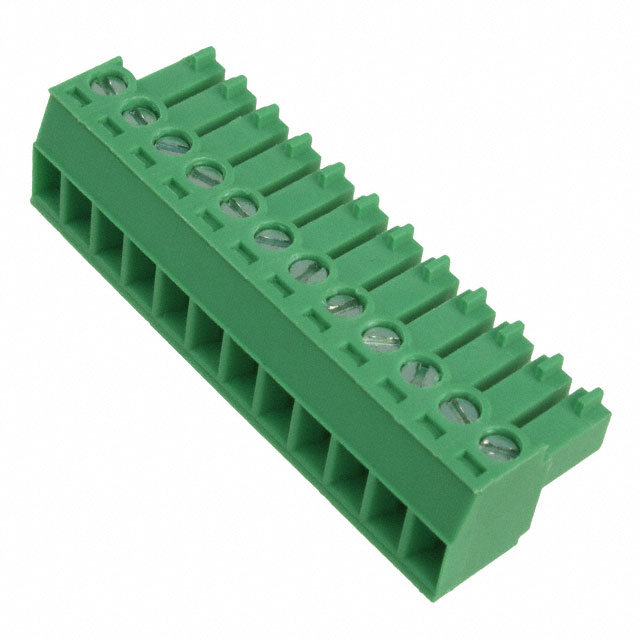

On Shore Technology Inc. OSTTJ1231530	0.28 Nm	2.5 Lb-In	7 mm	6 mm	1.5 mm˛	Brass	Brass	Green	Plug Female Sockets	16 AWG	26 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V	1.5 mm²	115 °C	-40 C	3.81 mm	0.15 in

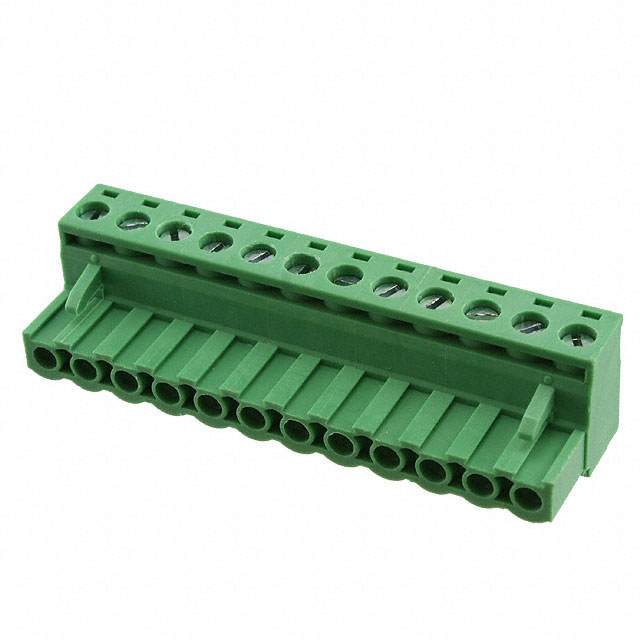

On Shore Technology Inc. OSTTJ125153	0.56 Nm	5 Lb-In	8 mm	7 mm		Brass	Brass	Green	Plug Female Sockets	12 AWG	24 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V		105 ░C	-30 ░C	5.08 mm	0.2 in	0.34 mm˛	2.5 mm˛	UL94 V-0	Tin	300 V	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ127152	0.56 Nm	5 Lb-In	8 mm	7 mm		Brass	Brass	Green	Plug Female Sockets	12 AWG	24 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V		105 ░C	-30 ░C	5 mm	0.197 in			UL94 V-0			0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ1231520	0.28 Nm	2.5 Lb-In	7 mm	6 mm		Brass	Brass	Green	Plug Female Sockets	16 AWG	26 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V	1.5 mm²	105 ░C	-30 ░C	3.81 mm	0.15 in			UL94 V-0
On Shore Technology Inc. OSTTJ125183							Brass	Gray	Plug Female Sockets	12 AWG	24 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V		105 ░C	-30 ░C	5.08 mm	0.2 in				Tin	300 V	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ120150	0.56 Nm	5 Lb-In	8 mm	7 mm		Brass	Brass		Plug Female Sockets	12 AWG	24 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V		105 ░C	-30 ░C	7.62 mm	0.3 in			UL94 V-0
On Shore Technology Inc. OSTTJ127150	0.56 Nm	5 Lb-In	8 mm	7 mm		Brass	Brass	Green	Plug Female Sockets	12 AWG	30 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V		115 °C	-40 C	5 mm	0.197 in			UL94 V-0			0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ120152	0.56 Nm	5 Lb-In	8 mm	7 mm		Brass	Brass		Plug Female Sockets	12 AWG	24 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V		105 ░C	-30 ░C	7.62 mm	0.3 in			UL94 V-0

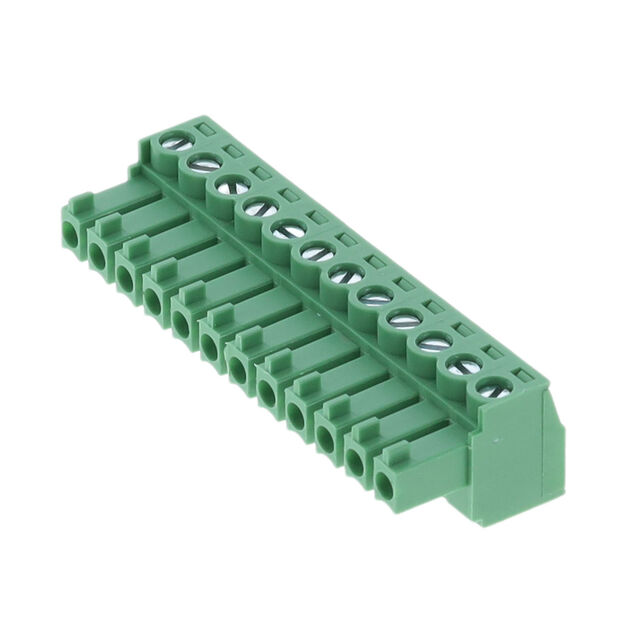

On Shore Technology Inc. OSTTJ1231530M02	0.28 Nm	2.5 Lb-In	7 mm	6 mm	1.5 mm˛	Brass	Brass	Green	Plug Female Sockets	16 AWG	26 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V	1.5 mm²	115 °C	-40 C	3.81 mm	0.15 in			UL94 V-0
On Shore Technology Inc. OSTTJ1211520	0.28 Nm	2.5 Lb-In	7 mm	6 mm		Brass	Brass		Plug Female Sockets	16 AWG	26 AWG	12	12	Screw	Free Hanging (In-Line)	1	300 V		105 ░C	-30 ░C	3.5 mm	0.138 "			UL94 V-0
