171320 Series

Manufacturer: Molex

Catalog

IMPEL 90 OHM, 4 PAIR RIGHT-ANGLE DAUGHTERCARD, 1.90MM PITCH, UNGUIDED, 12 COLUMNS, 96 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.36MM

Part	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical	Connector Style	Contact Finish	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions Loaded	Number of Rows	Material Flammability Rating	Connector Type	Number of Columns	Connector Usage	Connector Usage	Termination	Number of Positions	Color	Current Rating (Amps)	Pitch [x]	Pitch [x]	Number of Positions	Contact Layout, Typical
Molex 1713201022	150 VDC	0.76 Ám	30 Áin	48 Differential Pairs	Impel™	Gold	Through Hole Right Angle	85 °C	-55 °C	Shielded	All	8	UL94 V-0	Receptacle Female Sockets	12	Coplanar	Daughtercard	Press-Fit	96	Black

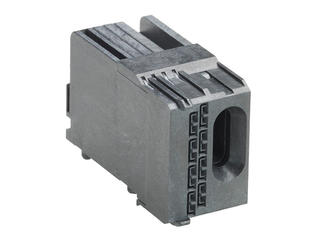

Molex 1713209032	150 VDC	0.76 Ám	30 Áin	8	Guide Right Impel	Gold	Through Hole Right Angle	85 °C	-55 °C	Board Guide Shielded	All	8	UL94 V-0	Receptacle Female Sockets	2	Coplanar	Daughtercard	Press-Fit		Black	75 mA	0.075 in	1.9 mm	16
Molex 1713203022		0.76 Ám	30 Áin	48 Differential Pairs	Guide Left Impel	Gold	Through Hole Right Angle	105 ░C	-40 °C	Shielded	All	8	UL94 V-0	Receptacle Female Sockets	12	Coplanar	Daughtercard	Press-Fit	96	Black

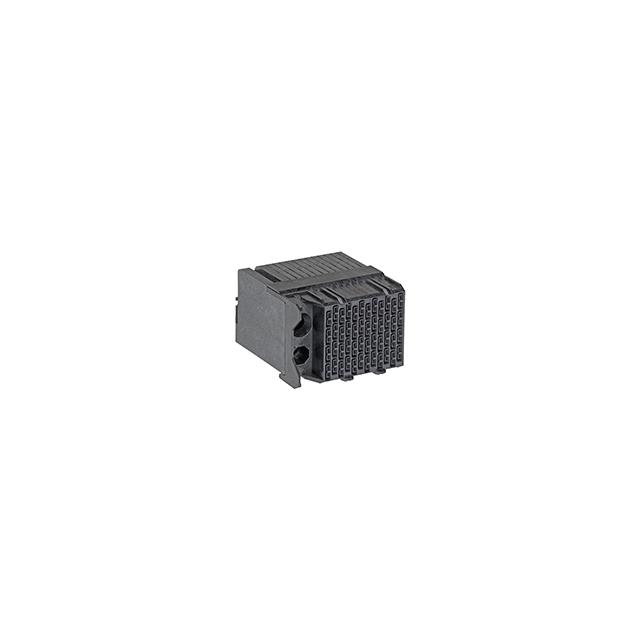

Molex 1713201034

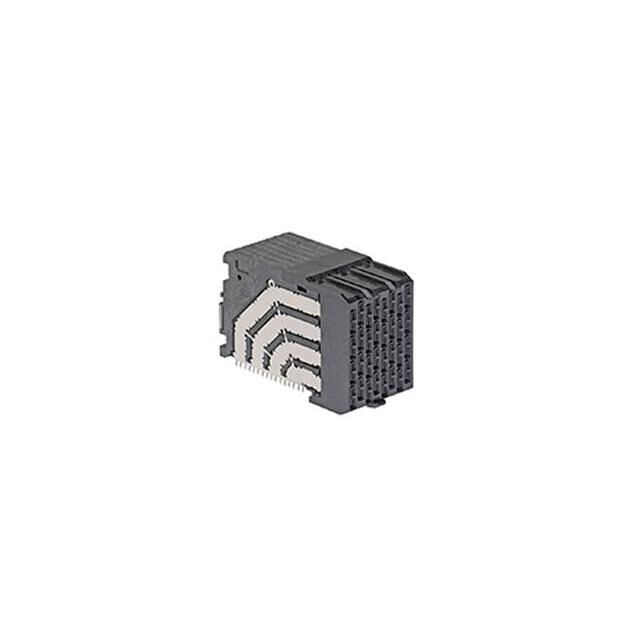

Molex 1713201020	150 VDC	0.76 Ám	30 Áin		Impel™	Gold	Through Hole Right Angle	85 °C	-55 °C	Shielded	All	8	UL94 V-0	Receptacle Female Sockets	10	Coplanar	Daughtercard	Press-Fit	80	Black					40 Differential Pairs
