9768 Series
Manufacturer: Belden Inc.
Beta
⌘K

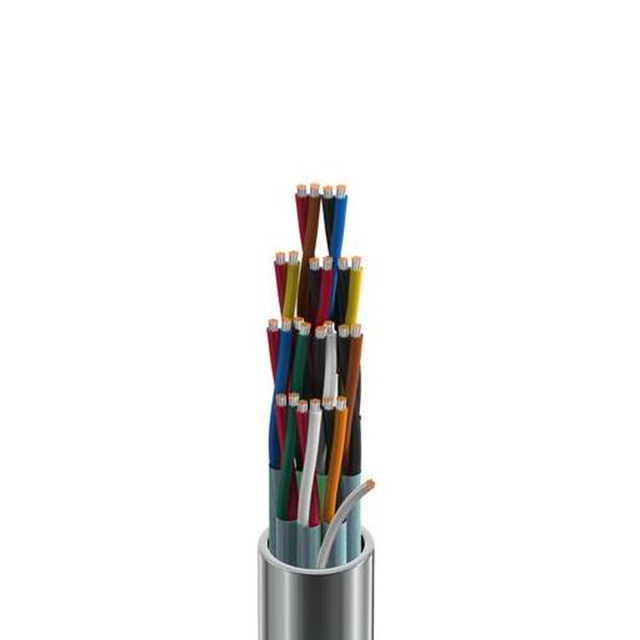

MULTI-PAIR 24COND 22AWG
| Part | Shield Coverage | Shield Material | Wire Gauge | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Features | Ratings | Jacket Color | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Usage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 22 AWG | 24 | 11.79 mm | 0.464 in | 30 AWG | 7 | Polypropylene (PP) | Drain Wire | UL Style 2919 | Chrome | Poly-Vinyl Chloride (PVC) | Foil | 0.036 in | 0.914 mm | 152.4 m | 500 ft | 80 °C | -20 ░C | Copper Tinned | Audio Control Instrumentation | Multi-Pair |
Belden Inc. | 100 % | Aluminum | 22 AWG | 24 | 11.79 mm | 0.464 in | 30 AWG | 7 | Polypropylene (PP) | Drain Wire | UL Style 2919 | Chrome | Poly-Vinyl Chloride (PVC) | Foil | 0.036 in | 0.914 mm | 76.2 m | 250 ft | 80 °C | -20 ░C | Copper Tinned | Audio Control Instrumentation | Multi-Pair |
