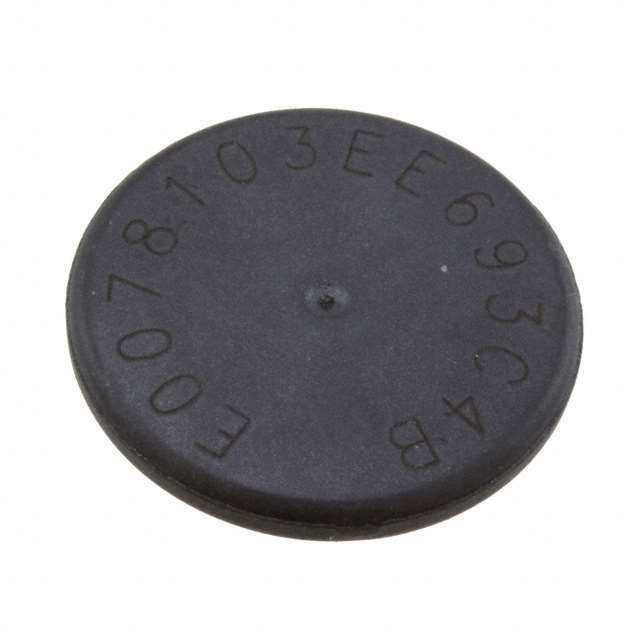

RF-HDT-DVBB Series

13.56-MHz Overmolded Transponder Based on Tag-it HF-I Plus Die

Catalog

13.56-MHz Overmolded Transponder Based on Tag-it HF-I Plus Die

Part	Mounting Type	Frequency	Package / Case	Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Technology	Memory Type	Size / Dimension [diameter]	Size / Dimension [x]	Style	Writable Memory
Texas Instruments RF-HDT-AJLE-G1	Surface Mount	13.56 MHz	Die	RFID Transponder	Wafer	85 °C	-40 °C	ISO 15693 ISO 18000-3
Texas Instruments RF-HDT-WNMC-M0	Surface Mount	13.56 MHz	Die	RFID Transponder	Wafer	85 °C	-40 °C	ISO 15693 ISO 18000-3
Texas Instruments RF-HDT-AJLC-G0	Surface Mount	13.56 MHz	Die	RFID Transponder	Wafer	85 °C	-40 °C	ISO 15693 ISO 18000-3
Texas Instruments RF-HDT-AJLS-G1	Surface Mount	13.56 MHz	Die	RFID Transponder	Wafer	85 °C	-40 °C	ISO 15693 ISO 18000-3
Texas Instruments RF-HDT-DVBE-N0		13.56 MHz				90 °C	-25 °C	ISO 15693 ISO 18000-3	Passive	Read/Write	22 mm	3 mm	Encapsulated	256 b
Texas Instruments RF-HDT-DVBB-N2		13.56 MHz				90 °C	-25 °C	ISO 15693 ISO 18000-3	Passive	Read/Write	22 mm	3 mm	Encapsulated	2 kb
Texas Instruments RF-HDT-SJLC-G0	Surface Mount	13.56 MHz	Die	RFID Transponder	Wafer	85 °C	-40 °C	ISO 15693 ISO 18000-3

Catalog

13.56-MHz Overmolded Transponder Based on Tag-it HF-I Plus Die

Key Features

• ISO/IEC 15693-2,-3; ISO/IEC 18000-3 Compliant13.56-MHz Operating Frequency2048-Bit User Memory in 64 × 32-bit BlocksUser and Factory Lock Per BlockApplication Family Identifier (AFI)Data Storage Format Identifier (DSFID)Combined Inventory Read BlockAPPLICATIONSLaundryProcess AutomationProduct AuthenticationAsset ManagementISO/IEC 15693-2,-3; ISO/IEC 18000-3 Compliant13.56-MHz Operating Frequency2048-Bit User Memory in 64 × 32-bit BlocksUser and Factory Lock Per BlockApplication Family Identifier (AFI)Data Storage Format Identifier (DSFID)Combined Inventory Read BlockAPPLICATIONSLaundryProcess AutomationProduct AuthenticationAsset Management

Description

Texas Instruments’ 13.56-MHz encapsulated plus transponder is compliant with the ISO/IEC 15693 and ISO/IEC 18000-3 global open standards. This product offers a user accessible memory of 2048 bits, organized in 64 blocks and an extensive command set. Designed for harsh environments, such as garment tracking in laundries, each transponder has a 64-bit factory programmed Read Only Number, which is also laser engraved on the transponder housing. Prior to delivery, transponders undergo complete functional and parametric testing to provide the high quality that customers have come to expect from TI. The 13.56-MHz encapsulated plus transponders are well suited for a variety of applications including but not limited to: laundry garment tracking, process automation, product authentication, and asset management. Texas Instruments’ 13.56-MHz encapsulated plus transponder is compliant with the ISO/IEC 15693 and ISO/IEC 18000-3 global open standards. This product offers a user accessible memory of 2048 bits, organized in 64 blocks and an extensive command set. Designed for harsh environments, such as garment tracking in laundries, each transponder has a 64-bit factory programmed Read Only Number, which is also laser engraved on the transponder housing. Prior to delivery, transponders undergo complete functional and parametric testing to provide the high quality that customers have come to expect from TI. The 13.56-MHz encapsulated plus transponders are well suited for a variety of applications including but not limited to: laundry garment tracking, process automation, product authentication, and asset management.
