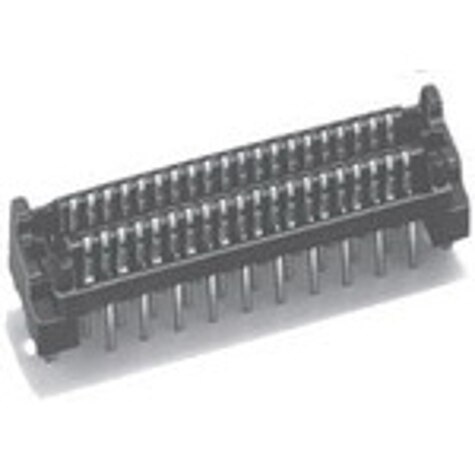

XH4A Series
Board to Board & Mezzanine Connectors CONNECTOR
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
Board to Board & Mezzanine Connectors CONNECTOR
Beta
⌘K
Board to Board & Mezzanine Connectors CONNECTOR
Board to Board & Mezzanine Connectors CONNECTOR
Board to Board & Mezzanine Connectors CONNECTOR
| Part | Pitch | Pitch | Number of Positions | Connector Type | Height Above Board [z] | Height Above Board [z] | Features | Mounting Type | Number of Rows [custom] | Contact Finish | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 0.05 in | 1.27 mm | 80 | Self Mating Non-Gendered Hermaphroditic | 4.2 mm | 0.165 in | Board Lock | Surface Mount | 2 | Gold | 5 mm 6 mm |
Omron Electronics Inc-EMC Div | 0.05 in | 1.27 mm | 40 | Self Mating Non-Gendered Hermaphroditic | 4.2 mm | 0.165 in | Board Lock | Surface Mount | 2 | Gold | 5 mm 6 mm |
Omron Electronics Inc-EMC Div | 0.05 in | 1.27 mm | 80 | Self Mating Non-Gendered Hermaphroditic | 6.2 mm | 0.244 in | Board Lock | Through Hole | 2 | Gold | 8 mm 9 mm |
Omron Electronics Inc-EMC Div | 0.05 in | 1.27 mm | 100 | Self Mating Non-Gendered Hermaphroditic | 4.2 mm | 0.165 in | Board Lock | Surface Mount | 2 | Gold | 5 mm 6 mm |
Omron Electronics Inc-EMC Div | 0.05 in | 1.27 mm | 40 | Self Mating Non-Gendered Hermaphroditic | 6.2 mm | 0.244 in | Board Lock | Through Hole | 2 | Gold | 8 mm 9 mm |
 Omron Electronics Inc-EMC Div | 0.05 in | 1.27 mm | 100 | Self Mating Non-Gendered Hermaphroditic | 6.2 mm | 0.244 in | Board Lock | Through Hole | 2 | Gold | 8 mm 9 mm |
Omron Electronics Inc-EMC Div | 0.05 in | 1.27 mm | 40 | Self Mating Non-Gendered Hermaphroditic | 5.2 mm | 0.205 in | Board Lock | Through Hole | 2 | Gold | 6 mm 7 mm 8 mm |
