726-054 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 54POS 0.125

Part	Termination Rows	Material - Insulation	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Contact Material	Card Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch	Pitch	Color	Mounting Type	Contact Type	Read Out	Gender	Termination Rows [custom]	Number of Rows [custom]

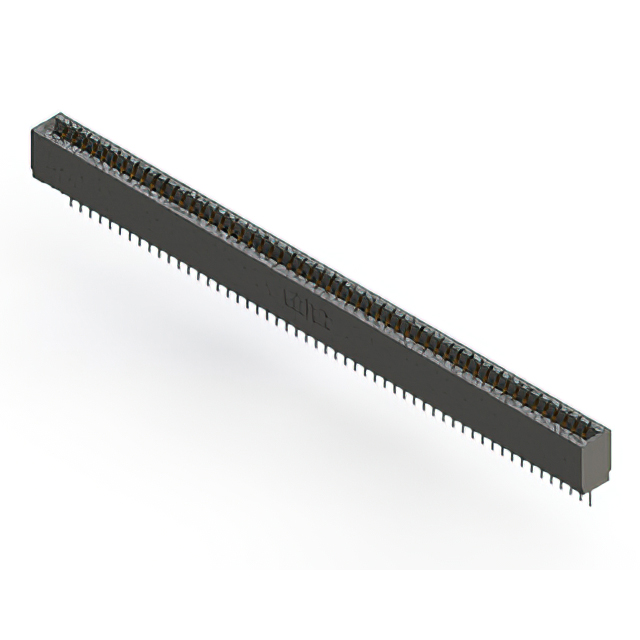

EDAC Inc. 726-054-527-101	1	Polyester Thermoplastic	54	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	54	Gold	Copper Alloy	Non Specified - Single Edge	1	-40 C	105 ░C	Press-Fit	3.18 mm	0.125 in	Black	Through Hole	Cantilever	Single	Female

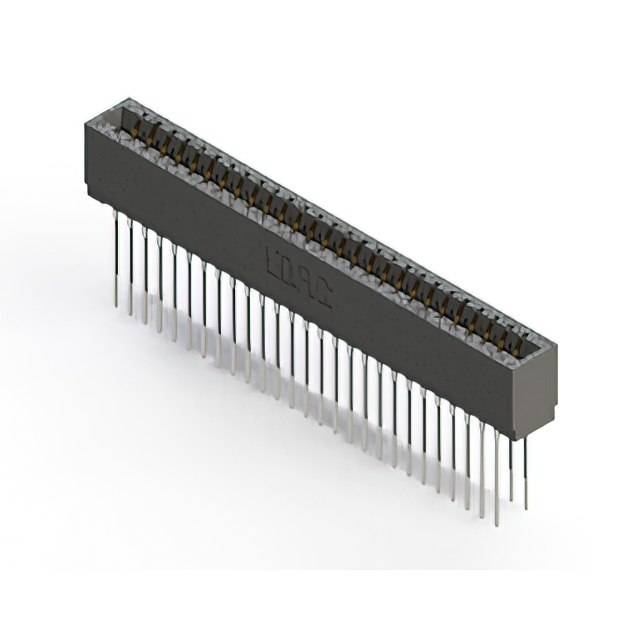

EDAC Inc. 726-054-541-201		Polyester Thermoplastic	27	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	54	Gold	Copper Alloy	Non Specified - Dual Edge		-40 C	105 ░C	Press-Fit Wire Wrap	3.18 mm	0.125 in	Black	Through Hole	Cantilever	Dual	Female	2	2
EDAC Inc. 726-054-553-101	1	Polyester Thermoplastic	54	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	54	Gold	Copper Alloy	Non Specified - Single Edge	1	-40 C	105 ░C	Press-Fit Wire Wrap	3.18 mm	0.125 in	Black	Through Hole	Cantilever	Single	Female
EDAC Inc. 726-054-541-101	1	Polyester Thermoplastic	54	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	54	Gold	Copper Alloy	Non Specified - Single Edge	1	-40 C	105 ░C	Press-Fit Wire Wrap	3.18 mm	0.125 in	Black	Through Hole	Cantilever	Single	Female

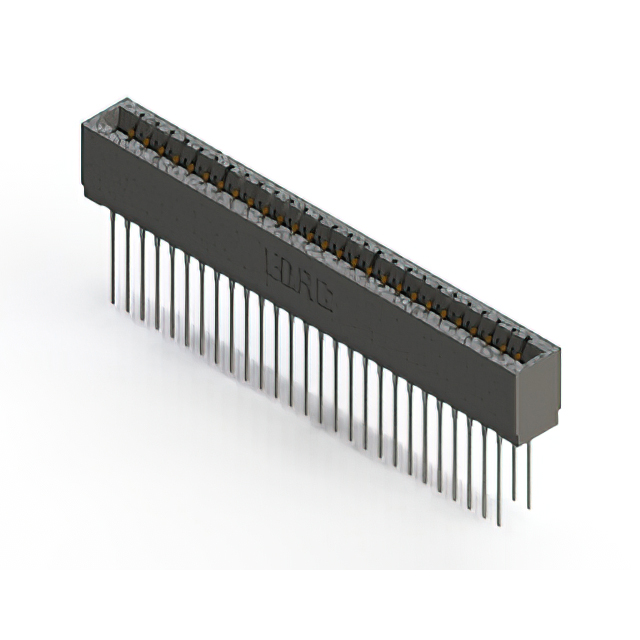

EDAC Inc. 726-054-553-201		Polyester Thermoplastic	27	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	54	Gold	Copper Alloy	Non Specified - Dual Edge		-40 C	105 ░C	Press-Fit Wire Wrap	3.18 mm	0.125 in	Black	Through Hole	Cantilever	Dual	Female	2	2
EDAC Inc. 726-054-540-201		Polyester Thermoplastic	27	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	54	Gold	Copper Alloy	Non Specified - Dual Edge		-40 C	105 ░C	Press-Fit Wire Wrap	3.18 mm	0.125 in	Black	Through Hole	Cantilever	Dual	Female	2	2
EDAC Inc. 726-054-540-101	1	Polyester Thermoplastic	54	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	54	Gold	Copper Alloy	Non Specified - Single Edge	1	-40 C	105 ░C	Press-Fit Wire Wrap	3.18 mm	0.125 in	Black	Through Hole	Cantilever	Single	Female
