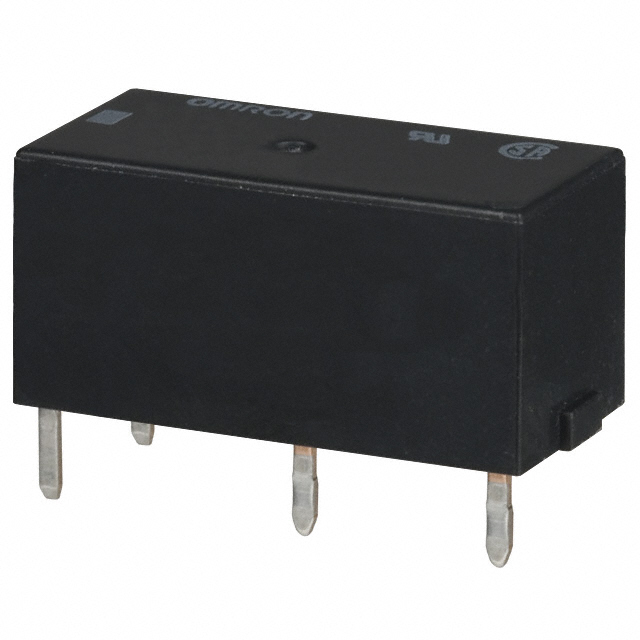

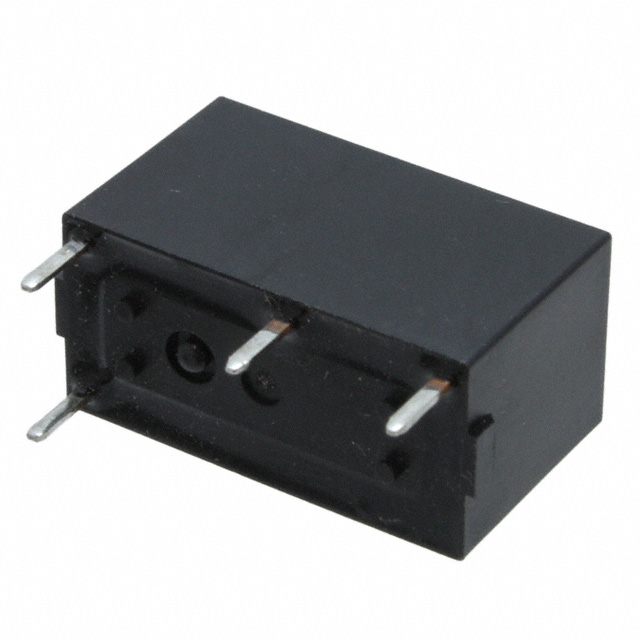

G6B-117 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 8A 12V
| Part | Coil Type | Switching Voltage | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Termination Style | Coil Resistance | Seal Rating | Must Operate Voltage | Relay Type | Approval Agency | Contact Rating (Current) | Mounting Type | Coil Current | Operate Time | Must Release Voltage | Coil Voltage | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | Plug In | 720 Ohms | Sealed - Fully | 8.4 VDC | General Purpose | CSA TUV UR | 8 A | Socketable | 16.7 mA | 10 ms | 1.2 VDC | 12 VDC | Cadmium Free Silver Alloy |
 Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | PC Pin | 45 Ohms | Sealed - Fully | 2.1 VDC | General Purpose | CSA TUV UR | 8 A | Through Hole | 66.7 mA | 10 ms | 0.3 VDC | Cadmium Free Silver Alloy | |
Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | PC Pin | 720 Ohms | Sealed - Flux Protection | 8.4 VDC | General Purpose | CSA TUV UR | 8 A | Through Hole | 16.7 mA | 10 ms | 1.2 VDC | 12 VDC | Cadmium Free Silver Alloy |
Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | PC Pin | 125 Ohms | Sealed - Flux Protection | 3.5 VDC | General Purpose | CSA TUV UR | 8 A | Through Hole | 40 mA | 10 ms | 0.5 VDC | 5 VDC | Cadmium Free Silver Alloy |
 Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | Plug In | 2.88 kOhms | Sealed - Fully | 16.8 VDC | General Purpose | CSA TUV UR | 8 A | Socketable | 8.3 mA | 10 ms | 2.4 VDC | 24 VDC | Cadmium Free Silver Alloy |
Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | PC Pin | 2.88 kOhms | Sealed - Fully | 16.8 VDC | General Purpose | CSA TUV UR | 8 A | Through Hole | 8.3 mA | 10 ms | 2.4 VDC | 24 VDC | Silver Indium Tin (AgInSn) |
Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | PC Pin | 180 Ohms | Sealed - Fully | 4.2 VDC | General Purpose | CSA TUV UR | 8 A | Through Hole | 33.3 mA | 10 ms | 0.6 VDC | Silver Indium Tin (AgInSn) | |
Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | PC Pin | 125 Ohms | Sealed - Fully | 3.5 VDC | General Purpose | CSA TUV UR | 8 A | Through Hole | 40 mA | 10 ms | 0.5 VDC | 5 VDC | Cadmium Free Silver Alloy |
Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | PC Pin | 720 Ohms | Sealed - Fully | 8.4 VDC | General Purpose | CSA TUV UR | 8 A | Through Hole | 16.7 mA | 10 ms | 1.2 VDC | 12 VDC | Silver Indium Tin (AgInSn) |
Omron Electronics Inc-EMC Div | Non Latching | 125 VDC 380 VAC | SPST-NO (1 Form A) | 70 °C | -25 °C | 10 ms | PC Pin | 2.88 kOhms | Sealed - Fully | 16.8 VDC | General Purpose | CSA TUV UR | 8 A | Through Hole | 8.3 mA | 10 ms | 2.4 VDC | 24 VDC | Cadmium Free Silver Alloy |
