6GK57938 Series
Manufacturer: Siemens
Beta
⌘K
IWLAN ANTENNA ANT793-8DK
| Part | Gain | Number of Bands | Termination | Frequency (Center/Band) | RF Family/Standard | VSWR | Frequency Range [Min] | Frequency Range [Max] | Mounting Type | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Antenna Type | Frequency Group | Ingress Protection | Applications | Height (Max) [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

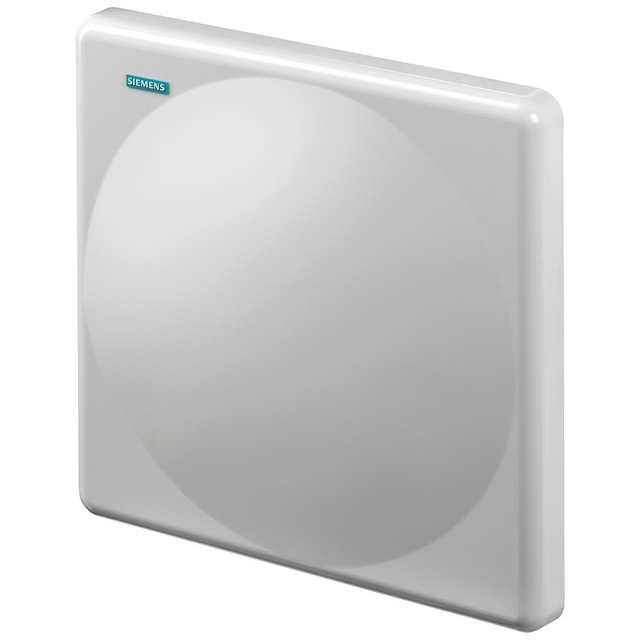

 Siemens | 23 dBi | 1 | N Type Female | 5.5125 GHz | WiFi | 1.7 | 5.15 GHz | 5.875 GHz | Wall Mount | 371 mm | 14.606 in | Module | SHF (f > 4GHz) | IP67 | WLAN | ||

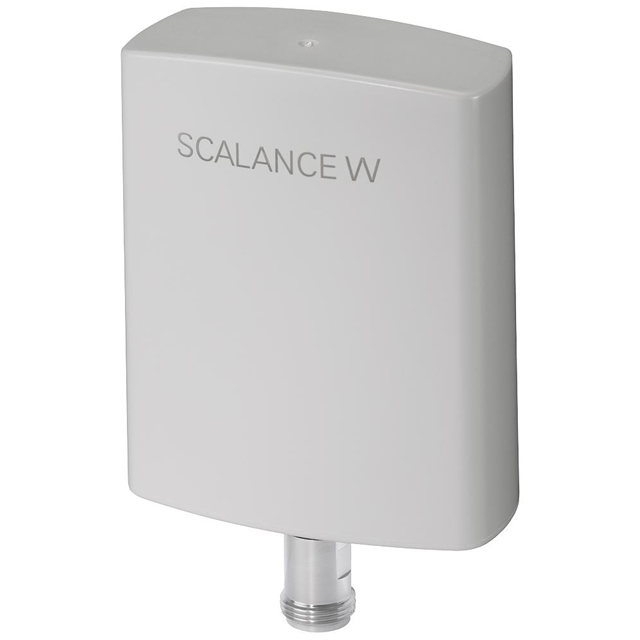

Siemens | 18 dBi | 1 | N Type Female | 5.512 GHz | WiFi | 1.7 | 5.15 GHz | 5.875 GHz | Surface Mount | 7.48 in | Module | SHF (f > 4GHz) | IP67 | Wi-Fi WLAN | 190 mm | ||

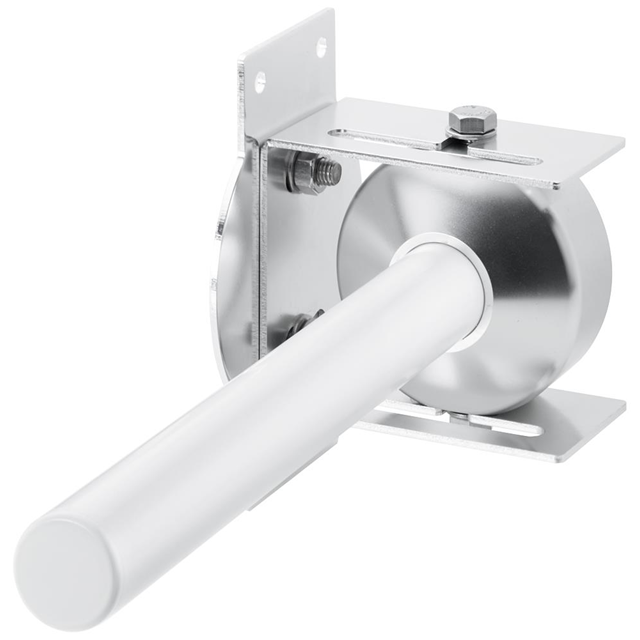

 Siemens | 14 dBi | 1 | N Type Female | 5400 MHz | WiFi | 2.5 | 4.9 GHz | 5.9 GHz | Bracket Mount | 283 mm | 11.142 in | Whip Straight | SHF (f > 4GHz) | Wi-Fi WLAN | |||
 Siemens | 13.5 dB | 1 | N Type Female | 5.125 GHz | WiFi | 1.5 | 4.9 GHz | 5.35 GHz | Wall Mount | Module | SHF (f > 4GHz) | IP66 IP67 | WLAN | 101 mm | 3.976 in |
