TPD4E001-Q1 Series

Quad 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0

Catalog

Quad 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0

Part	Capacitance @ Frequency	Unidirectional Channels [custom]	Supplier Device Package	Mounting Type	Package / Case	Type	Voltage - Clamping (Max) @ Ipp	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Power - Peak Pulse	Applications	Qualification
Texas Instruments TPD4E001RDBVR	1.5 pF	4	SOT-23-6	Surface Mount	SOT-23-6	Steering	17 V	11 V	5.5 V	85 °C	-40 °C	Automotive	100 W	Ethernet USB
Texas Instruments TPD4E001DBVR		4	SOT-23-6	Surface Mount	SOT-23-6	Steering		11 V	5.5 V	85 °C	-40 °C		100 W	Ethernet
Texas Instruments TPD4E001QDBVRQ1		4	SOT-23-6	Surface Mount	SOT-23-6	Steering	16 V	11 V	5.5 V	125 °C	-40 °C	Automotive	100 W	Ethernet	AEC-Q100
Texas Instruments TPD4E001DCKR		4	SC-70-6	Surface Mount	6-TSSOP SC-88 SOT-363	Steering		11 V	5.5 V	85 °C	-40 °C		100 W	Ethernet
Texas Instruments TPD4E001DRLR		4	SOT-5X3	Surface Mount	SOT-563 SOT-666	Steering		11 V	5.5 V	85 °C	-40 °C		100 W	Ethernet

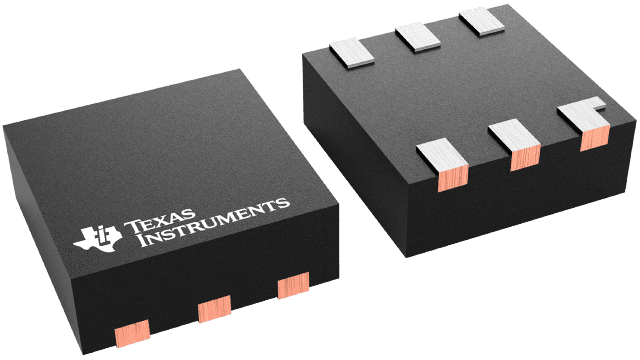

Texas Instruments TPD4E001DPKR		4	6-USON (1.6x1.6)	Surface Mount	6-UFDFN	Steering		11 V	5.5 V	85 °C	-40 °C		100 W	Ethernet
Texas Instruments TPD4E001DRSR		4	6-SON (3x3)	Surface Mount		Steering		11 V	5.5 V	85 °C	-40 °C		100 W	Ethernet

Catalog

Quad 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0

Key Features

• AEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 3BHBM Level 15 kVDevice CDM ESD Classification Level C5IEC 61000-4-2 Level 4 ESD Protection±8-kV Contact Discharge±15-kV Air-Gap DischargeIEC 61000-4-5 Surge Protection5.5 A (8/20 µs)Low 1.5-pF Input CapacitanceLow 10-nA Maximum Leakage Current0.9-V to 5.5-V Supply Voltage RangeAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 3BHBM Level 15 kVDevice CDM ESD Classification Level C5IEC 61000-4-2 Level 4 ESD Protection±8-kV Contact Discharge±15-kV Air-Gap DischargeIEC 61000-4-5 Surge Protection5.5 A (8/20 µs)Low 1.5-pF Input CapacitanceLow 10-nA Maximum Leakage Current0.9-V to 5.5-V Supply Voltage Range

Description

The TPD4E001 is a four-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD4E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device has a 1.5pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra low leakage current (< 1nA maximum) is suitable for precision analog measurements in applications like glucose meters and heart rate monitors. The TPD4E001 is available in DRL(SOT), DBV (SOT-23), DCK (SC-70), DRS (QFN), and DPK (PUSON) packages and is specified for –40°C to +85°C operation. See also theTPD4E1U06DCKRandTPD4E1U06DBVRwhich are p2p compatible with theTPD4E001DCKRandTPD4E001DBVR. These devices offer higher IEC protection, lower capacitance, lower clamping voltage, and eliminate the input capacitor requirement. The TPD4E001 is a four-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD4E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device has a 1.5pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra low leakage current (< 1nA maximum) is suitable for precision analog measurements in applications like glucose meters and heart rate monitors. The TPD4E001 is available in DRL(SOT), DBV (SOT-23), DCK (SC-70), DRS (QFN), and DPK (PUSON) packages and is specified for –40°C to +85°C operation. See also theTPD4E1U06DCKRandTPD4E1U06DBVRwhich are p2p compatible with theTPD4E001DCKRandTPD4E001DBVR. These devices offer higher IEC protection, lower capacitance, lower clamping voltage, and eliminate the input capacitor requirement.
