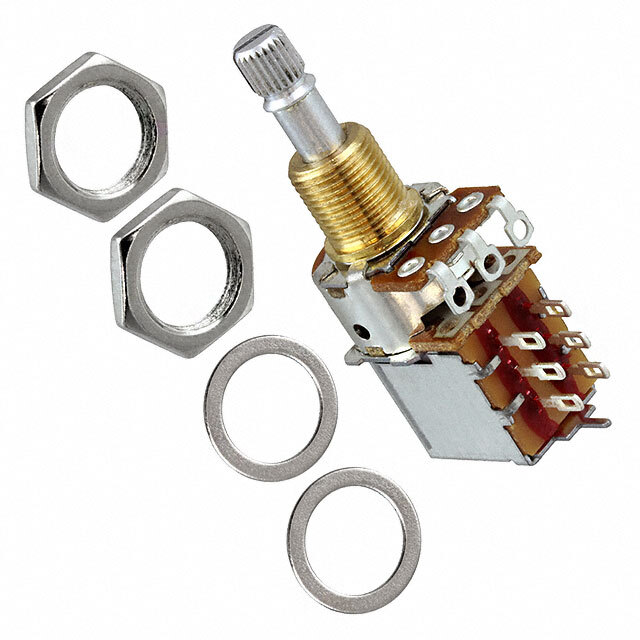

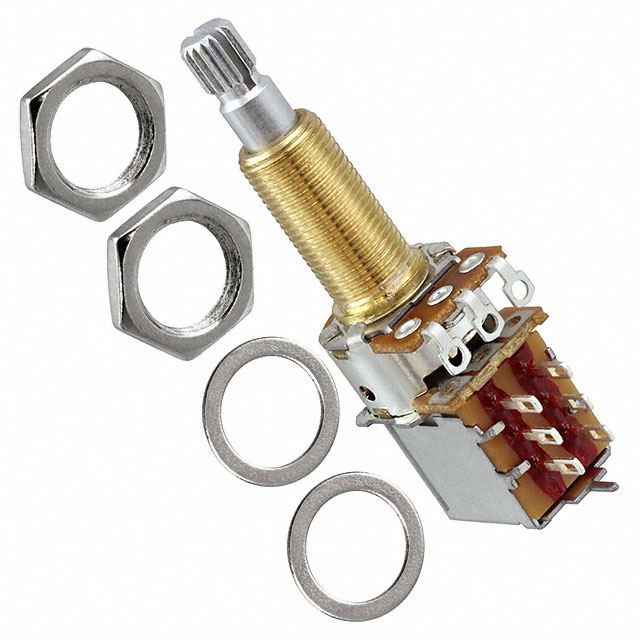

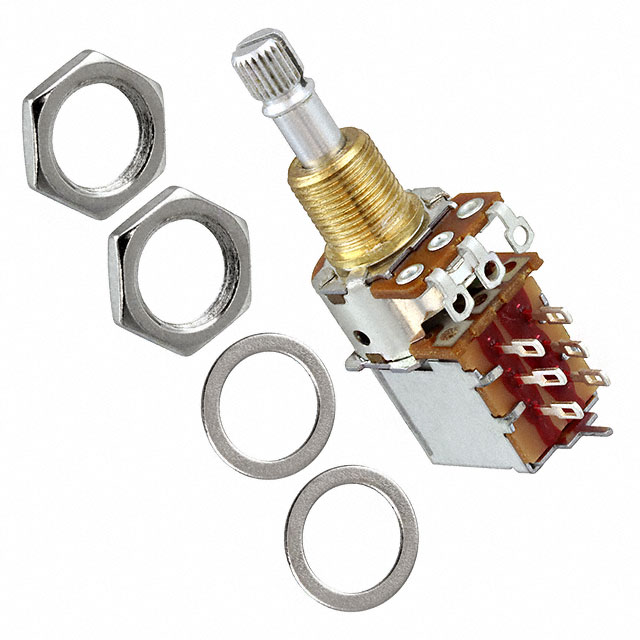

PDB185 Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 500K OHM 1/20W CARBON LOG
| Part | Power (Watts) | Power (Watts) | Resistive Material | Adjustment Type | Bushing Thread | Mounting Type | Resistance (Ohms) | Taper | Actuator Length [x] | Actuator Length [x] | Rotation | Size - Body [x] | Size - Body [y] | Size - Body [y] | Size - Body [x] | Tolerance | Number of Turns | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Gangs | Built in Switch | Actuator Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 500 kOhms | Logarithmic | 0.748 in | 19 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6.35 mm | 0.25 in | 1 | Push-Push DPDT | Slotted | Solder Lug |
Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 250000 Ohms | Logarithmic | 0.748 in | 19 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6.35 mm | 0.25 in | 1 | Push-Push DPDT | Slotted | Solder Lug |
 Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 500 kOhms | Logarithmic | 0.748 in | 19 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6 mm | 0.236 in | 1 | Push-Push DPDT | Knurled and Slotted | Solder Lug |
 Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 500 kOhms | Logarithmic | 0.748 in | 19 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6 mm | 0.236 in | 1 | Push-Push DPDT | Knurled and Slotted | Solder Lug |
 Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 250000 Ohms | Logarithmic | 0.748 in | 19 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6 mm | 0.236 in | 1 | Push-Push DPDT | Knurled and Slotted | Solder Lug |
Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 500 kOhms | Logarithmic | 1.083 in | 27.5 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6.35 mm | 0.25 in | 1 | Push-Push DPDT | Slotted | Solder Lug |
Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 500 kOhms | Reverse Logarithmic | 1.083 in | 27.5 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6.35 mm | 0.25 in | 1 | Push-Push DPDT | Slotted | Solder Lug |
 Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 500 kOhms | Reverse Logarithmic | 1.083 in | 27.5 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6 mm | 0.236 in | 1 | Push-Push DPDT | Knurled and Slotted | Solder Lug |
Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 250000 Ohms | Reverse Logarithmic | 0.748 in | 19 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6.35 mm | 0.25 in | 1 | Push-Push DPDT | Slotted | Solder Lug |
 Bourns Inc. | 0.05 W | 50 mW | Carbon | User Defined | 3/8-32 | Panel Mount | 250000 Ohms | Reverse Logarithmic | 0.748 in | 19 mm | 300 ░ | 21.9 mm | 15 mm | 0.591 " | 0.862 " | 20 % | 1 | 6 mm | 0.236 in | 1 | Push-Push DPDT | Knurled and Slotted | Solder Lug |
