BLF7 Series

Catalog

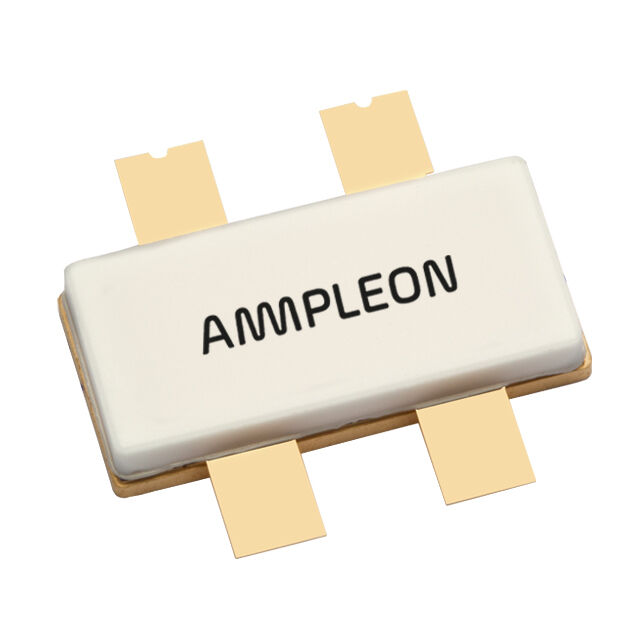

RF MOSFET LDMOS 28V LDMOST

Part	Supplier Device Package	Voltage - Test	Current Rating (Amps)	Current - Test	Power - Output	Gain	Package / Case	Voltage - Rated	Mounting Type	Configuration	Frequency [Max]	Frequency [Min]
Ampleon USA Inc. BLF7G20LS-90P,112	LDMOST	28 V	18 A	550 mA	40 W	19.5 dB	SOT-1121B	65 V	Surface Mount	Common Source Dual	1.88 GHz	1.81 GHz
Ampleon USA Inc. BLF7G22LS-200,112	SOT502B	28 V		1.62 A	55 W	18.5 dBi	SOT-502B	65 V	Chassis Mount		2.17 GHz	2.11 GHz
Ampleon USA Inc. BLF7G24LS-100,118	SOT502B	28 V	28 A	900 mA	20 W	18 dBi	SOT-502B	65 V	Chassis Mount
Ampleon USA Inc. BLF7G22LS-200,118	SOT502B	28 V		1.62 A	55 W	18.5 dBi	SOT-502B	65 V	Chassis Mount		2.17 GHz	2.11 GHz
Ampleon USA Inc. BLF7G10LS-250,112	SOT502B	30 V		1.8 A	60 W	19.5 dB	SOT-502B	65 V	Chassis Mount		960 MHz	920 MHz
Ampleon USA Inc. BLF7G20LS-200,112	SOT502B	28 V		1.62 A	55 W	18 dBi	SOT-502B	65 V	Chassis Mount		1.88 GHz	1.81 GHz
Ampleon USA Inc. BLF7G24LS-140,112	SOT502B	28 V	28 A	1.3 A	30 W	18.5 dBi	SOT-502B	65 V	Chassis Mount
Ampleon USA Inc. BLF7G27LS-100,112	SOT502B	28 V	28 A	900 mA	20 W	18 dBi	SOT-502B	65 V	Chassis Mount		2700 MHz	2.5 GHz
Ampleon USA Inc. BLF7G24LS-100,112	SOT502B	28 V	28 A	900 mA	20 W	18 dBi	SOT-502B	65 V	Chassis Mount
Ampleon USA Inc. BLF7G24LS-140,118	SOT502B	28 V	28 A	1.3 A	30 W	18.5 dBi	SOT-502B	65 V	Chassis Mount
