747250 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

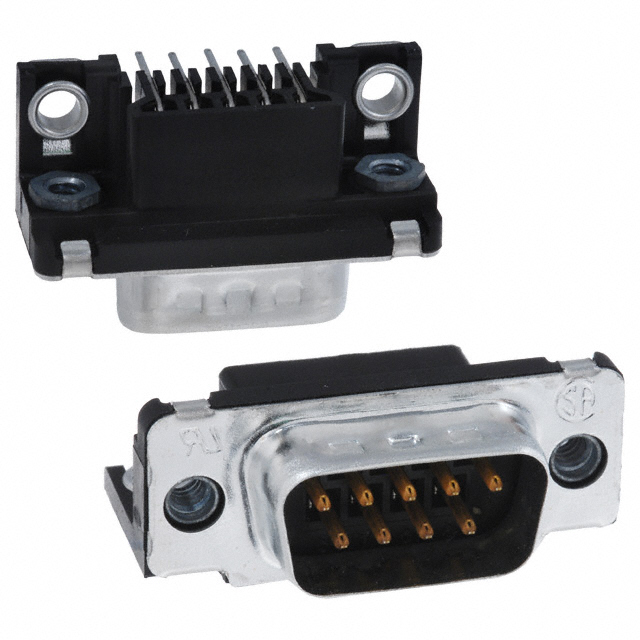

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Mounting Type | Flange Feature | Flange Feature | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Number of Rows [custom] | Contact Type | Connector Type | Connector Style | Backset Spacing | Backset Spacing | Current Rating (Amps) | Contact Finish Thickness | Number of Positions | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Brass | Right Angle Through Hole | Housing/Shell | 4-40 | Solder | 1 | DE E | UL94 V-0 | 2 | Signal | Plug Male Pins | D-Sub | 8.08 mm | 0.318 " | 6 A | Flash | 9 | Gold | Ground Strap Grounding Indents |
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Brass | Right Angle Through Hole | Housing/Shell (Unthreaded) | Solder | 1 | DE E | UL94 V-0 | 2 | Signal | Plug Male Pins | D-Sub | 8.08 mm | 0.318 " | 6 A | 9 | Gold | Ground Strap Grounding Indents |
