002218 Series

Manufacturer: Molex

Catalog

CONN RCPT 6POS 0.1 GOLD PCB

Part	Insulation Material	Contact Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Shape	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Positions Loaded	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Voltage Rating	Contact Finish - Post	Style	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Mounting Type	Current Rating (Amps)	Fastening Type	Connector Type	Insulation Color	Number of Rows	Features
Molex 0022182066	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	2 µin	0.051 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	6	All	Gold	0.51 µm	20 µin	UL94 V-0	Solder	250 VAC	Gold	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1

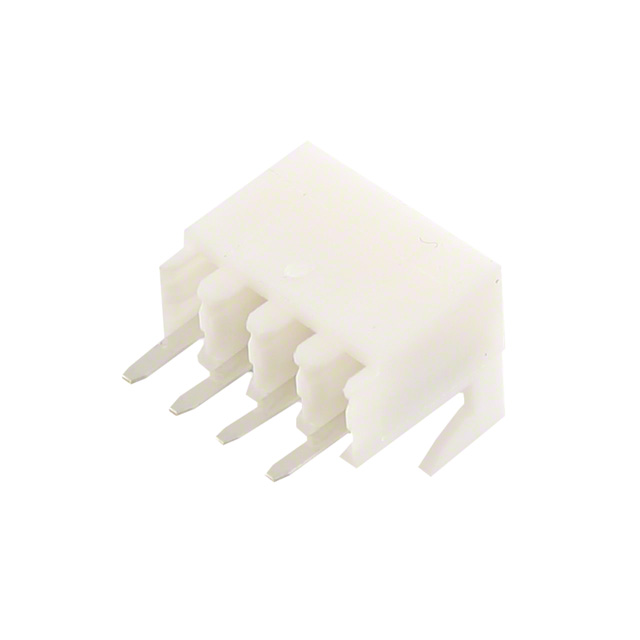

Molex 0022182041	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	4	All	Gold	0.38 µm	15 µin	UL94 V-0	Solder	250 VAC	Tin	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks

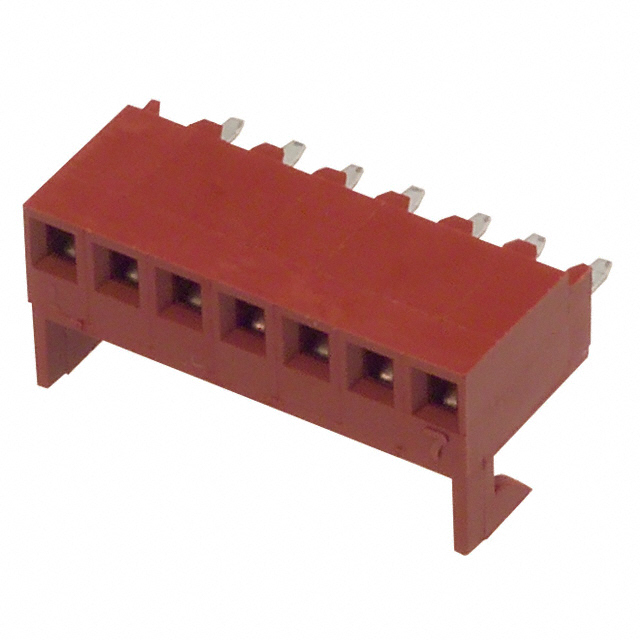

Molex 0022182071	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	7	All	Gold	0.38 µm	15 µin	UL94 V-0	Solder	250 VAC	Tin	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks
Molex 0022182253	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	2 µin	0.051 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	25	All	Gold	0.51 µm	20 µin	UL94 V-0	Solder	250 VAC	Gold	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks
Molex 0022182103	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	2 µin	0.051 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	10	All	Gold	0.51 µm	20 µin	UL94 V-0	Solder	250 VAC	Gold	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks
Molex 0022182083	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	2 µin	0.051 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	8	All	Gold	0.51 µm	20 µin	UL94 V-0	Solder	250 VAC	Gold	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks
Molex 0022182093	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	2 µin	0.051 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	9	All	Gold	0.51 µm	20 µin	UL94 V-0	Solder	250 VAC	Gold	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks

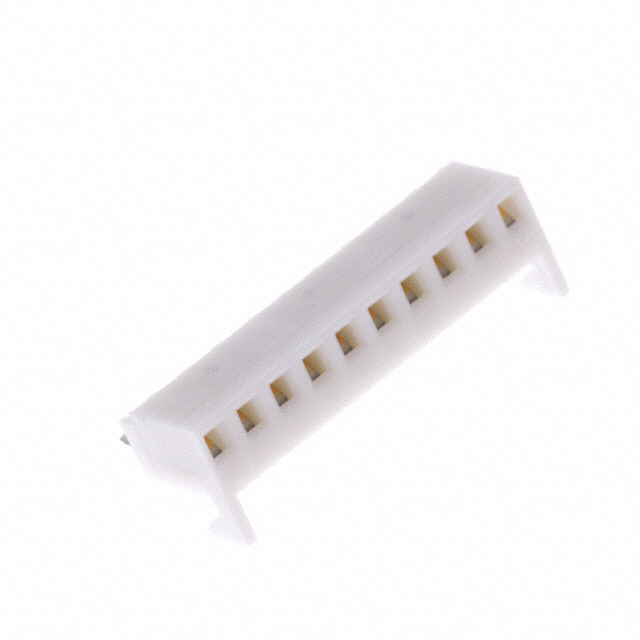

Molex 0022182101	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	10	All	Gold	0.38 µm	15 µin	UL94 V-0	Solder	250 VAC	Tin	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks
Molex 0022187063	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	6	All	Gold	0.38 µm	15 µin	UL94 V-0	Solder	250 VAC	Tin	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks
Molex 0022187043	Nylon Polyamide (PA)	Brass	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm	Cat Ear Female Non-Gendered	Square	0.132 in	3.35 mm	4	All	Gold	0.38 µm	15 µin	UL94 V-0	Solder	250 VAC	Tin	Board to Board Cable	0.311 in	7.9 mm	80 °C	-40 C	0.1 "	2.54 mm	Through Hole	2.5 A	Push-Pull	Receptacle	White	1	Board Hooks
