746-052 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 52POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Color	Number of Rows [custom]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Contact Material	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Finish	Number of Positions	Termination	Contact Type	Read Out	Termination Rows	Number of Rows

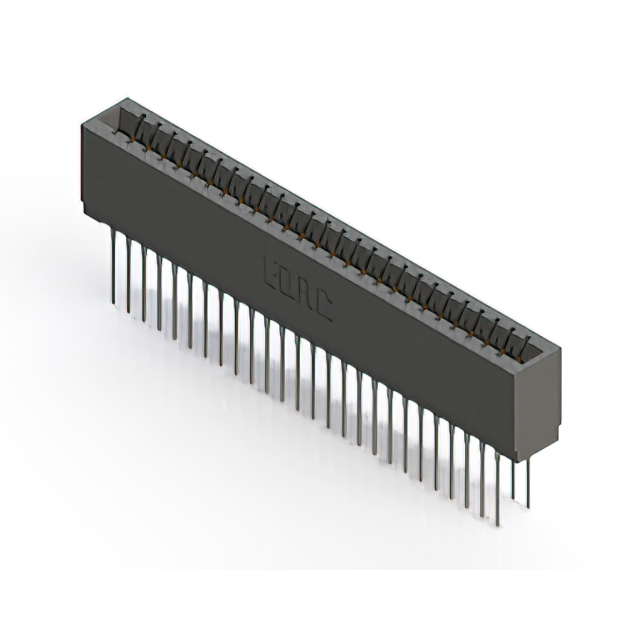

EDAC Inc. 746-052-545-201	Polyester Thermoplastic	2	-40 C	105 ░C	3.18 mm	0.125 in	Black	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	26	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit Wire Wrap	Cantilever	Dual
EDAC Inc. 746-052-527-206	Polyester Thermoplastic	2	-40 C	105 ░C	3.18 mm	0.125 in	Black	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	26	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit	Cantilever	Dual
EDAC Inc. 746-052-527-506	Polyester Thermoplastic		-40 C	105 ░C	3.18 mm	0.125 in	Black		Non Specified - Single Edge	30 Áin	0.76 Ám	52	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit	Cantilever	Single	1	1
EDAC Inc. 746-052-520-501	Polyester Thermoplastic		-40 C	105 ░C	3.18 mm	0.125 in	Black		Non Specified - Single Edge	30 Áin	0.76 Ám	52	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit	Cantilever	Single	1	1

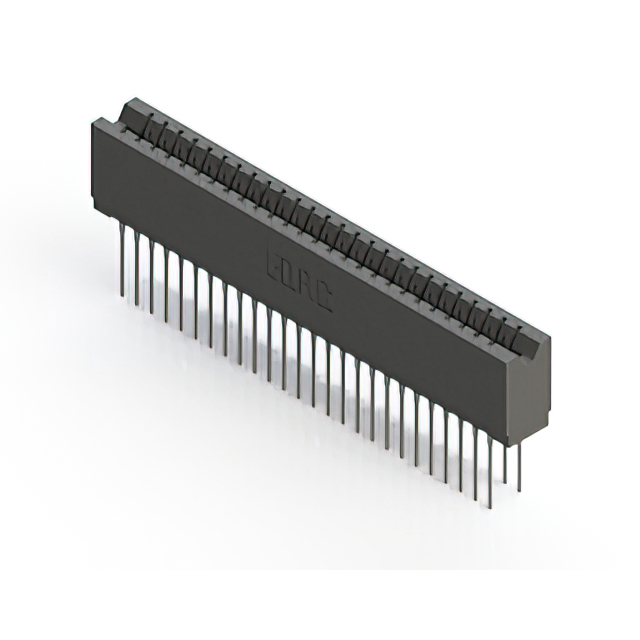

EDAC Inc. 746-052-553-606	Polyester Thermoplastic	2	-40 C	105 ░C	3.18 mm	0.125 in	Black	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	26	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit Wire Wrap	Cantilever	Dual
EDAC Inc. 746-052-540-506	Polyester Thermoplastic		-40 C	105 ░C	3.18 mm	0.125 in	Black		Non Specified - Single Edge	30 Áin	0.76 Ám	52	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit Wire Wrap	Cantilever	Single	1	1
EDAC Inc. 746-052-540-201	Polyester Thermoplastic	2	-40 C	105 ░C	3.18 mm	0.125 in	Black	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	26	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit Wire Wrap	Cantilever	Dual
EDAC Inc. 746-052-527-106	Polyester Thermoplastic		-40 C	105 ░C	3.18 mm	0.125 in	Black		Non Specified - Single Edge	30 Áin	0.76 Ám	52	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit	Cantilever	Single	1	1
EDAC Inc. 746-052-541-501	Polyester Thermoplastic		-40 C	105 ░C	3.18 mm	0.125 in	Black		Non Specified - Single Edge	30 Áin	0.76 Ám	52	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit Wire Wrap	Cantilever	Single	1	1
EDAC Inc. 746-052-527-201	Polyester Thermoplastic	2	-40 C	105 ░C	3.18 mm	0.125 in	Black	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	26	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Gold	52	Press-Fit	Cantilever	Dual
