8452 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

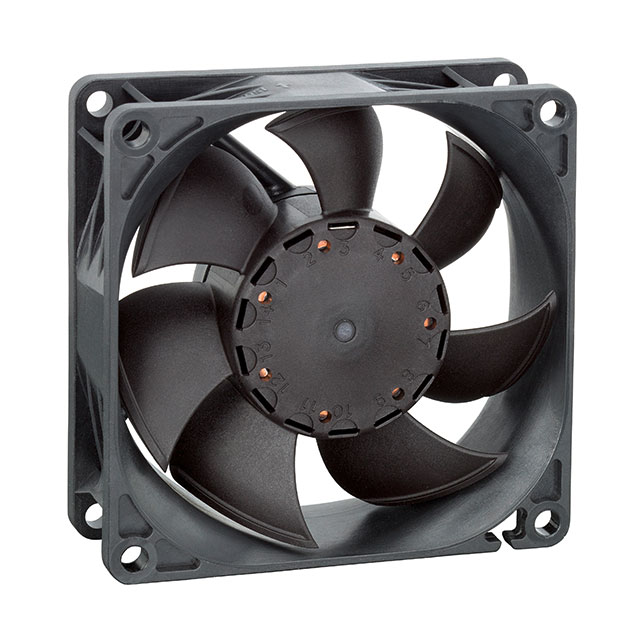

FAN AXIAL 80X25.4MM 12VDC WIRE
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Power (Watts) | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Termination | Features | Size / Dimension [z] | Size / Dimension [x] | Width [y] | Bearing Type | Fan Type | RPM | Noise | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 40 °C 60000 Hrs | 15 V | 8 V | 6.8 W | 1.93 m³/min | 68.8 CFM | -20 ░C | 70 °C | 12 VDC | 4 Wire Leads | PWM Control Speed Sensor (Tach) | 80 mm | 80 mm | 25.4 mm | Ball | Tubeaxial | 6200 RPM | 50 dB(A) | 0.231 lb | 104.78 g |
