CA24J Series

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

SWITCH ROCKER DPST 15A 125V

Part	Illumination Type, Color	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Electrical Life	Color - Actuator/Cap	Termination Style	Actuator Type	Features	Actuator Marking	Mounting Type	Illumination Voltage (Nominal)
Littelfuse/Commercial Vehicle Products CA24J137107PQ	Neon Red	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Red	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	Positive Detent	O -	Panel Mount Snap-In	125 VAC
Littelfuse/Commercial Vehicle Products CA24J767207Q	Green Neon	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Green	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	Positive Detent	No Marking	Panel Mount Snap-In	125 VAC
Littelfuse/Commercial Vehicle Products CA24J768207PQ	Green Neon	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Green	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	Positive Detent	O -	Panel Mount Snap-In	250 VAC
Littelfuse/Commercial Vehicle Products CA24J167207Q	Green Neon	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Green	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	Positive Detent	No Marking	Panel Mount Snap-In	125 VAC
Littelfuse/Commercial Vehicle Products CA24J737207PQ	Neon Red	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Red	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	Positive Detent	O -	Panel Mount Snap-In	125 VAC
Littelfuse/Commercial Vehicle Products CA24J138207DQ	Neon Red	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Red	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	Positive Detent	ON OFF Vertical	Panel Mount Snap-In	250 VAC
Littelfuse/Commercial Vehicle Products CA24J137107Q	Neon Red	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Red	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	Positive Detent	No Marking	Panel Mount Snap-In	125 VAC

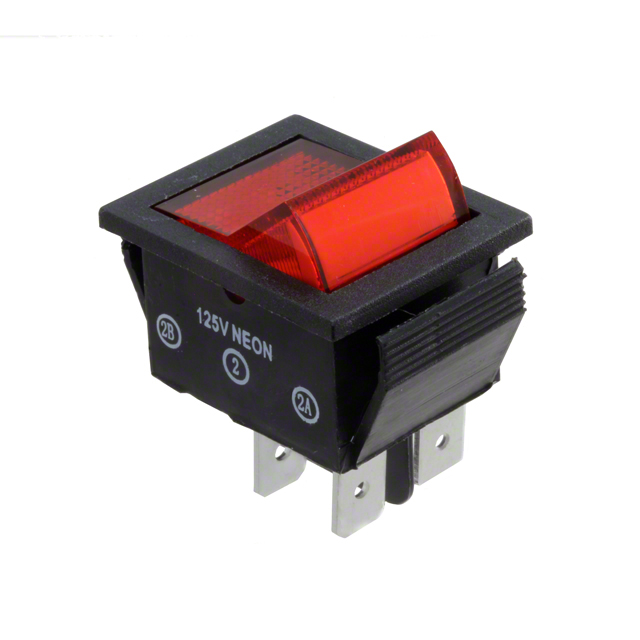

Littelfuse/Commercial Vehicle Products CA24J137207Q	Neon Red	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Red	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	Positive Detent	No Marking	Panel Mount Snap-In	125 VAC
Littelfuse/Commercial Vehicle Products CA24J768207Q	Green Neon	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Green	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	Positive Detent	No Marking	Panel Mount Snap-In	250 VAC
Littelfuse/Commercial Vehicle Products CA24J138207Q	Neon Red	125 V	DPST	65 °C	-30 ░C	CSA UL	15 A	On-Off	22 mm	28.2 mm	10000 Cycles	Red	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	Positive Detent	No Marking	Panel Mount Snap-In	250 VAC
