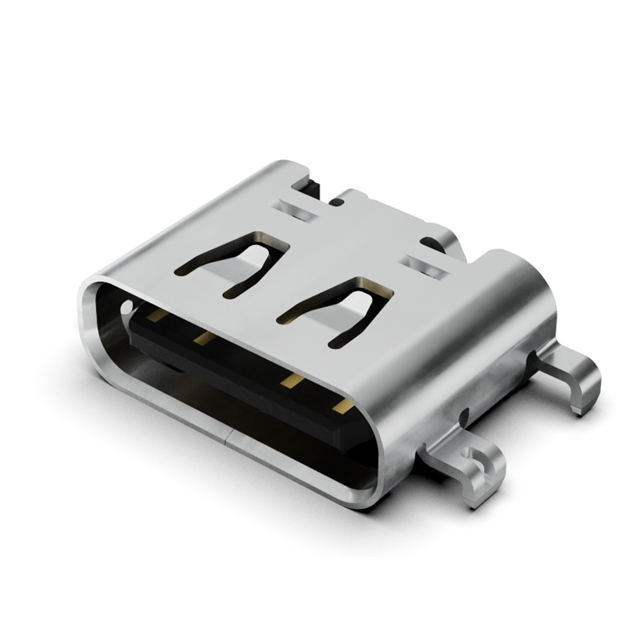

USB4500 Series
Manufacturer: GCT
Beta
⌘K
USB C REC 16P 3U" MID MNT 0.8MM
| Part | Insulation Color | Contact Finish | Shell/Shielding Material | Mating Cycles | Material Flammability Rating | Gender | Connector Type | Mounting Feature | Termination | Mounting Type | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Number of Contacts [custom] | Number of Contacts [custom] | Number of Contacts [custom] | Number of Ports | Features | Current Rating (Amps) | Specifications | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Black | Gold | Steel (SUS304) | 10000 20000 | UL94 V-0 | Receptacle | USB-C (USB TYPE-C) | Horizontal Mid Mount | Solder | Board Edge Cutout Surface Mount Through Hole Right Angle | 48 VDC | 85 °C | -25 °C | 8 | 16 | 24 | 1 | Solder Retention Tab | 5 A | USB 2.0 | Shielded |
