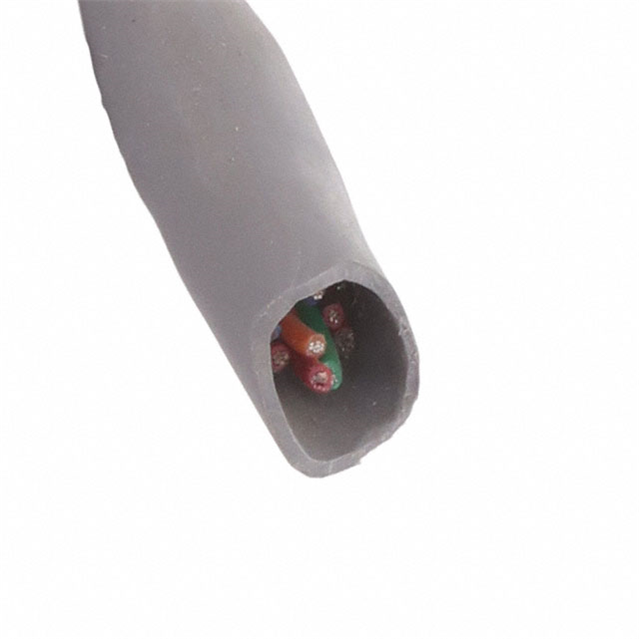

6368 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 20COND 24AWG 500'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Ratings | Shield Type | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Features | Voltage | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 9.63 mm | 0.379 " | Copper Tinned | 80 °C | -20 ░C | 152.4 m | 500 ft | UL Style 2464 | Braid Foil | Multi-Pair | 0.813 mm | 0.032 in | 24 AWG | 20 | Slate | Poly-Vinyl Chloride (PVC) | Drain Wire | 300 VDC | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 9.63 mm | 0.379 " | Copper Tinned | 80 °C | -20 ░C | UL Style 2464 | Braid Foil | Multi-Pair | 0.813 mm | 0.032 in | 24 AWG | 20 | Slate | Poly-Vinyl Chloride (PVC) | Drain Wire | 300 VDC | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 9.63 mm | 0.379 " | Copper Tinned | 80 °C | -20 ░C | 304.8 m | 1000 ft | UL Style 2464 | Braid Foil | Multi-Pair | 0.813 mm | 0.032 in | 24 AWG | 20 | Slate | Poly-Vinyl Chloride (PVC) | Drain Wire | 300 VDC | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG |
