CT 600:1 WITH FLUX COND 31MM
Description
AI

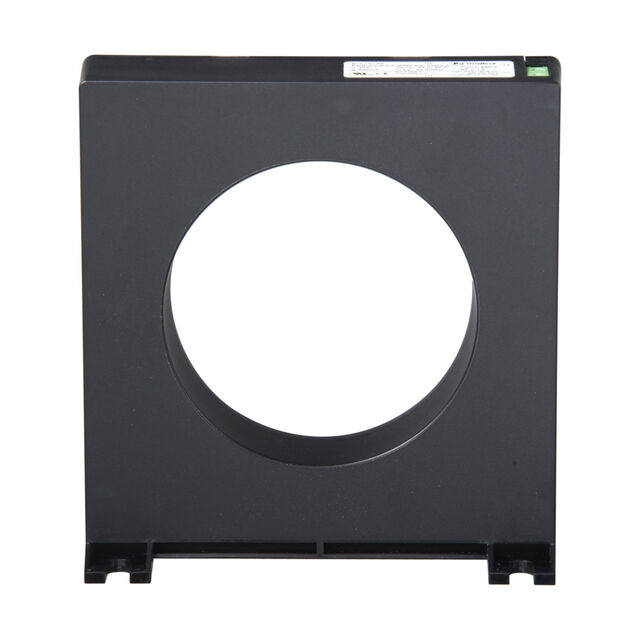

The ELCT series is a sensitive current transformer with integrated flux conditioner used with Littelfuse relays to detect low levels of earth-leakage current.
Beta
⌘K
CT 600:1 WITH FLUX COND 31MM
CT 600:1 WITH FLUX COND 31MM
| Part | Frequency Range [Min] | Frequency Range [Max] | Turns Ratio - Primary:Secondary [custom] | Turns Ratio - Primary:Secondary [custom] | Current Rating (Amps) | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Current Ratio | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 50 Hz | 400 Hz | 1 | 600 | 30 A | Non-Invasive (Solid Core) | 72.64 mm | 73.36 mm | 2.86 " | 2.888 " | Free Hanging (In-Line) | 30:0.05 | 2.452 in | 62.28 mm | Wire Leads |
