M7567 Series
Manufacturer: Harwin Inc.
Beta
⌘K

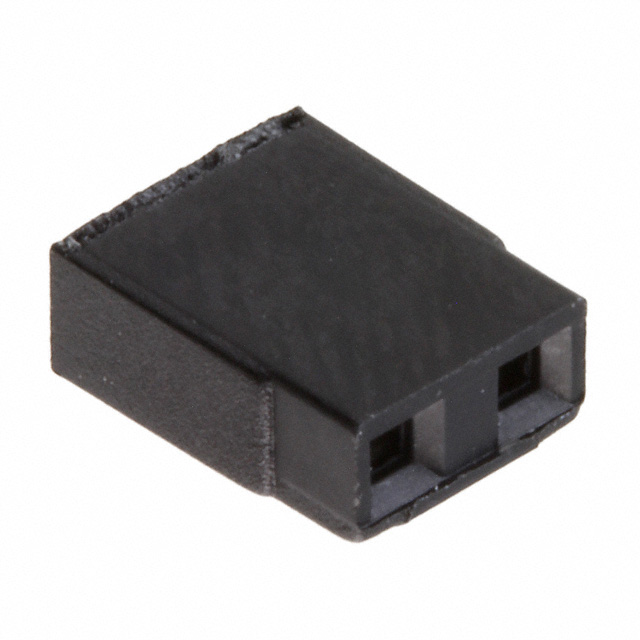

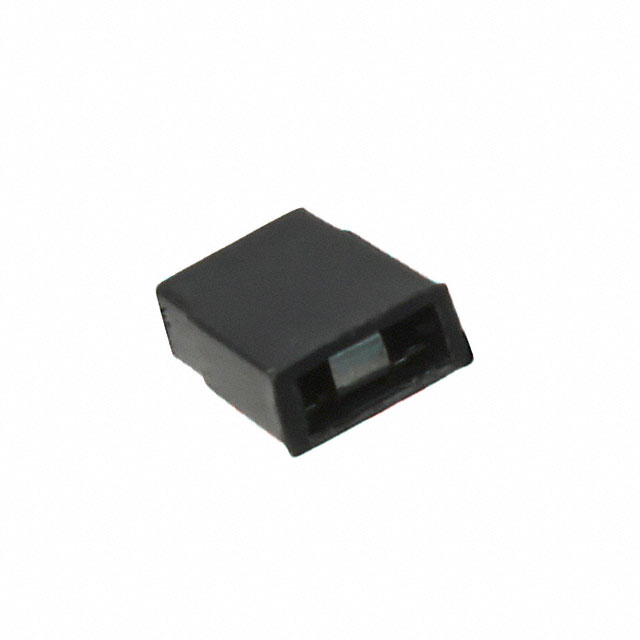

JUMPER SOCKET, 2WAY ROHS COMPLIANT: YES
| Part | Type | Material Flammability Rating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Gender | Contact Finish | Current Rating (Amps) | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Color | Housing Material | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Open Top | UL94 V-0 | 1 x 2 | 2 | Female Sockets | Tin | 3 A | 250 V | 3 µm | 118.1 µin | Black | Polyester Glass Filled | 0.1 " | 2.54 mm |
 Harwin Inc. | Open Top | UL94 V-0 | 1 x 2 | 2 | Female Sockets | Gold | 3 A | 250 V | 0.13 µm | 5.11 µin | Black | Polyester Glass Filled | 0.1 " | 2.54 mm |
