QBLP600 Series

Catalog

LED RGB DIFFUSED 4SMD

Part	Height (Max) [Max] [z]	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Voltage - Forward (Vf) (Typ)	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Configuration	Lens Size [x]	Lens Size [y]	Package / Case	Supplier Device Package	Viewing Angle	Lens Style	Lens Transparency	Mounting Type	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Millicandela Rating [custom]	Current - Test

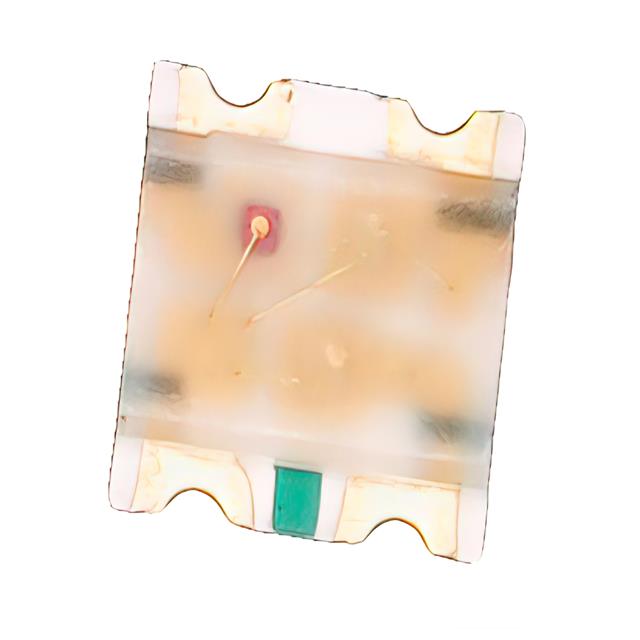

QT Brightek (QTB) QBLP600-RGB5-3164	0.9 mm	470 nm 528 nm 620 nm	5 mA	5 mA	5 mA	1.9 V 2.8 V 2.8 V	Blue Green Red	34 mcd	230 mcd	35 mcd	Common Anode	1.1 mm	1.5 mm	0606 (1616 Metric)	4-SMD	140 °	Rectangle with Flat Top	Diffused	Surface Mount	White	1.5 mm	1.6 mm

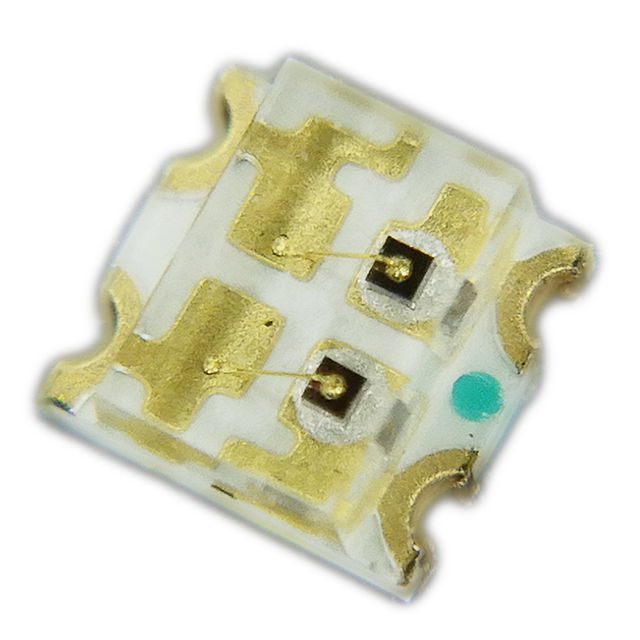

QT Brightek (QTB) QBLP600-RAG	0.8 mm					2.1 V 2.1 V	Red Yellow-Green			80 mcd	Independent	1.1 mm	1.5 mm	4-SMD No Lead	0606		Rectangle with Flat Top	Clear	Surface Mount	Colorless	1.5 mm	1.6 mm	570nm Yellow-Green 640nm Red	32 mcd	20mA Red 20mA Yellow-Green
