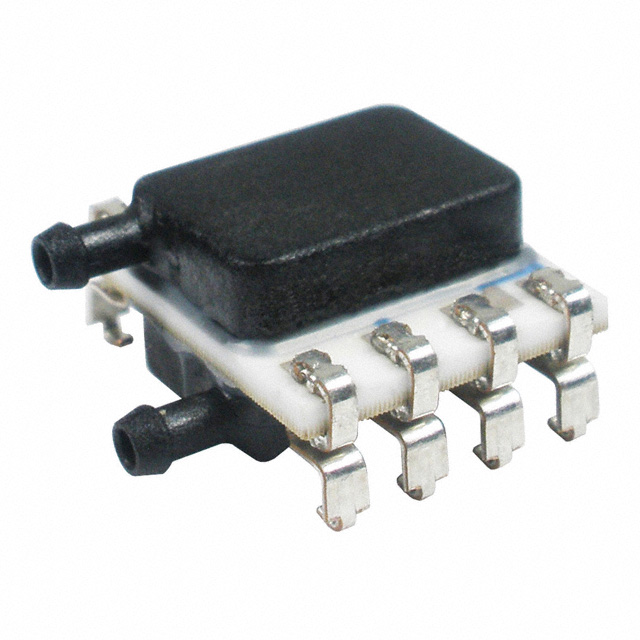

SSCMRRN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

PRESSURE SENSOR, TRUSTABILITY, GAUGE, 0 PSI, 100 PSI, 5.25 VDC, 4.75 VDC

Part	Port Style	Supplier Device Package	Applications	Mounting Type	Termination Style	Maximum Pressure	Maximum Pressure	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Pressure Type	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Output [Max]	Output [Min]	Port Size	Port Size	Port Size	Operating Pressure	Operating Pressure	Output	Maximum Pressure [Max]	Maximum Pressure [Max]
Honeywell Sensing and Productivity Solutions SSCMRRN100PGAB5	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab	250 PSI	1723.69 kPa	Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Vented Gauge	0.25 %	4.75 V	5.25 V	Analog Voltage	4.75 V	0.25 V	0.08 "	Dual Male Tube	1.93 mm	689.48 kPa	100 PSI
Honeywell Sensing and Productivity Solutions SSCMRRN100MDSA3	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab	20.31 PSI	140 kPa	Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Differential	0.25 %	3 V	3.6 V	SPI			0.08 "	Dual Male Tube	1.93 mm	10 kPa	1.45 PSI	12 b
Honeywell Sensing and Productivity Solutions SSCMRRN005PGAA5T

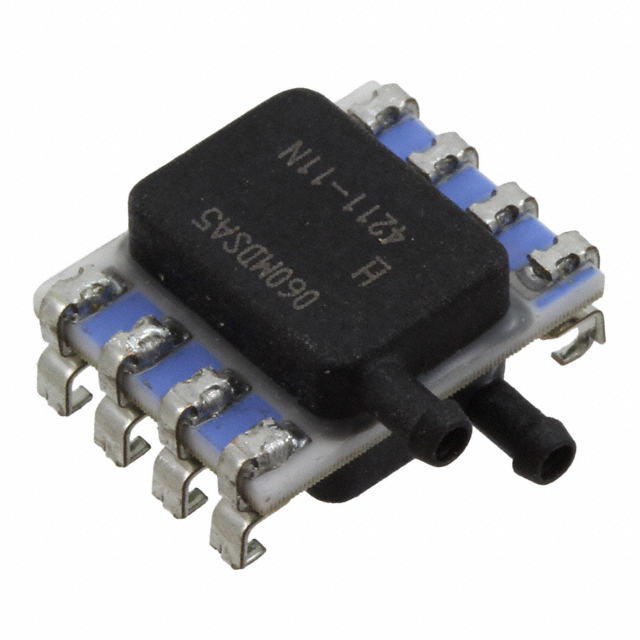

Honeywell Sensing and Productivity Solutions SSCMRRN060MDSA5	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab	12.33 PSI	85 kPa	Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Differential	0.25 %	4.75 V	5.25 V	SPI			0.08 "	Dual Male Tube	1.93 mm	6 kPa	0.87 PSI	12 b
Honeywell Sensing and Productivity Solutions SSCMRRN002ND2A3	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab			Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Differential	0.25 %	3.27 V	3.33 V	I2C			0.08 "	Dual Male Tube	1.93 mm	0.5 kPa	0.07 PSI	12 b
Honeywell Sensing and Productivity Solutions SSCMRRN030PD2A3	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab	120 PSI	827.37 kPa	Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Differential	0.25 %	3 V	3.6 V	I2C			0.08 "	Dual Male Tube	1.93 mm	206.84 kPa	30 PSI	12 b
Honeywell Sensing and Productivity Solutions SSCMRRN100MGAF5	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab	12.33 PSI	85 kPa	Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Vented Gauge	0.25 %	4.75 V	5.25 V	Analog Voltage			0.08 "	Dual Male Tube	1.93 mm	10 kPa	1.45 PSI
Honeywell Sensing and Productivity Solutions SSCMRRN010NGAB5	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab			Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Vented Gauge	0.25 %	4.95 V	5.05 V	Analog Voltage	4.75 V	0.25 V	0.08 "	Dual Male Tube	1.93 mm	2.49 kPa	0.36 PSI		74.75 kPa	10.84 PSI
Honeywell Sensing and Productivity Solutions SSCMRRN010ND7A3	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab	12.65 PSI	87.21 kPa	Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Differential	0.25 %	3.27 V	3.33 V	I2C			0.08 "	Dual Male Tube	1.93 mm	2.49 kPa	0.36 PSI	12 b
Honeywell Sensing and Productivity Solutions SSCMRRN100MD2A5	Barbed	8-SMT	Board Mount	Surface Mount	SMD (SMT) Tab	20.31 PSI	140 kPa	Amplified Output Temperature Compensated	85 °C	-40 C	8-SMD J-Lead Dual Ports Same Side	Differential	0.25 %	3 V	3.6 V	I2C			0.08 "	Dual Male Tube	1.93 mm	10 kPa	1.45 PSI	12 b
