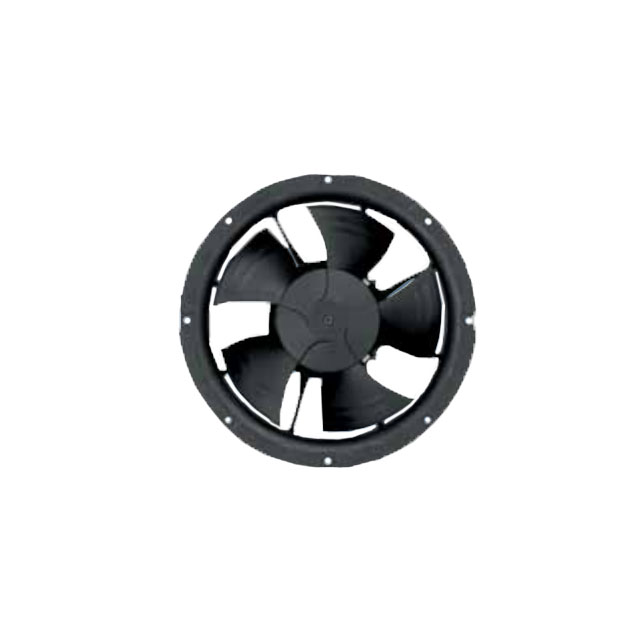

W1G172 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN AXIAL
| Part | Material - Frame | Material - Blade | Current Rating (Amps) | Fan Type | Size / Dimension [diameter] | Size / Dimension | Approval Agency | Static Pressure | Static Pressure | Features | Bearing Type | Power (Watts) | Ingress Protection | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | RPM [Max] | RPM [Min] | Termination | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polypropylene (PP) | Polyamide (PA) Nylon | 0.3 A | Tubeaxial | 222 mm | Round | CE CSA EAC UL VDE | 0.241 in H2O | 60 Pa | Dual Speed Thermal Overload Protector (TOP) | Ball | 21 W | IP55 - Dust Protected Water Resistant | 115 VAC | -30 ░C | 50 °C | 2500 RPM | 1700 RPM | 3 Wire Leads with Splice Terminals | 78.5 mm |
