320571 Series

Catalog

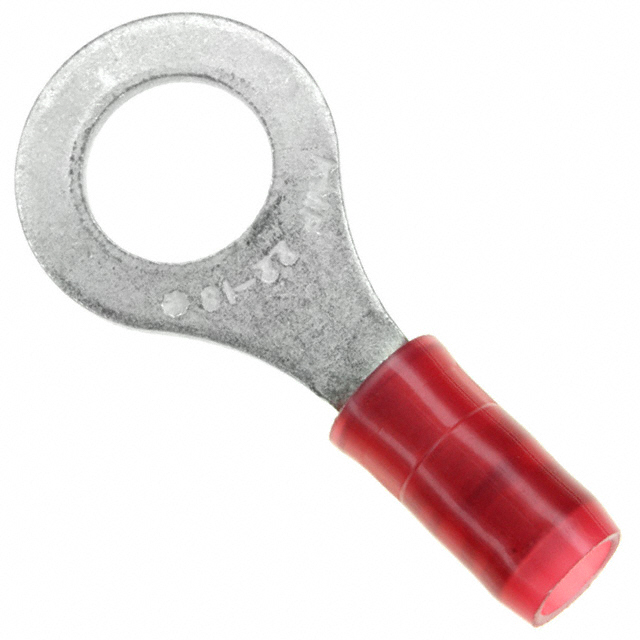

TERMINAL,PIDG R IR 22 1/4

Part	Contact Material	Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Features	Color	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Contact Finish	Material - Insulation	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Mounting Type	Insulation	Terminal Type	Thickness	Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]

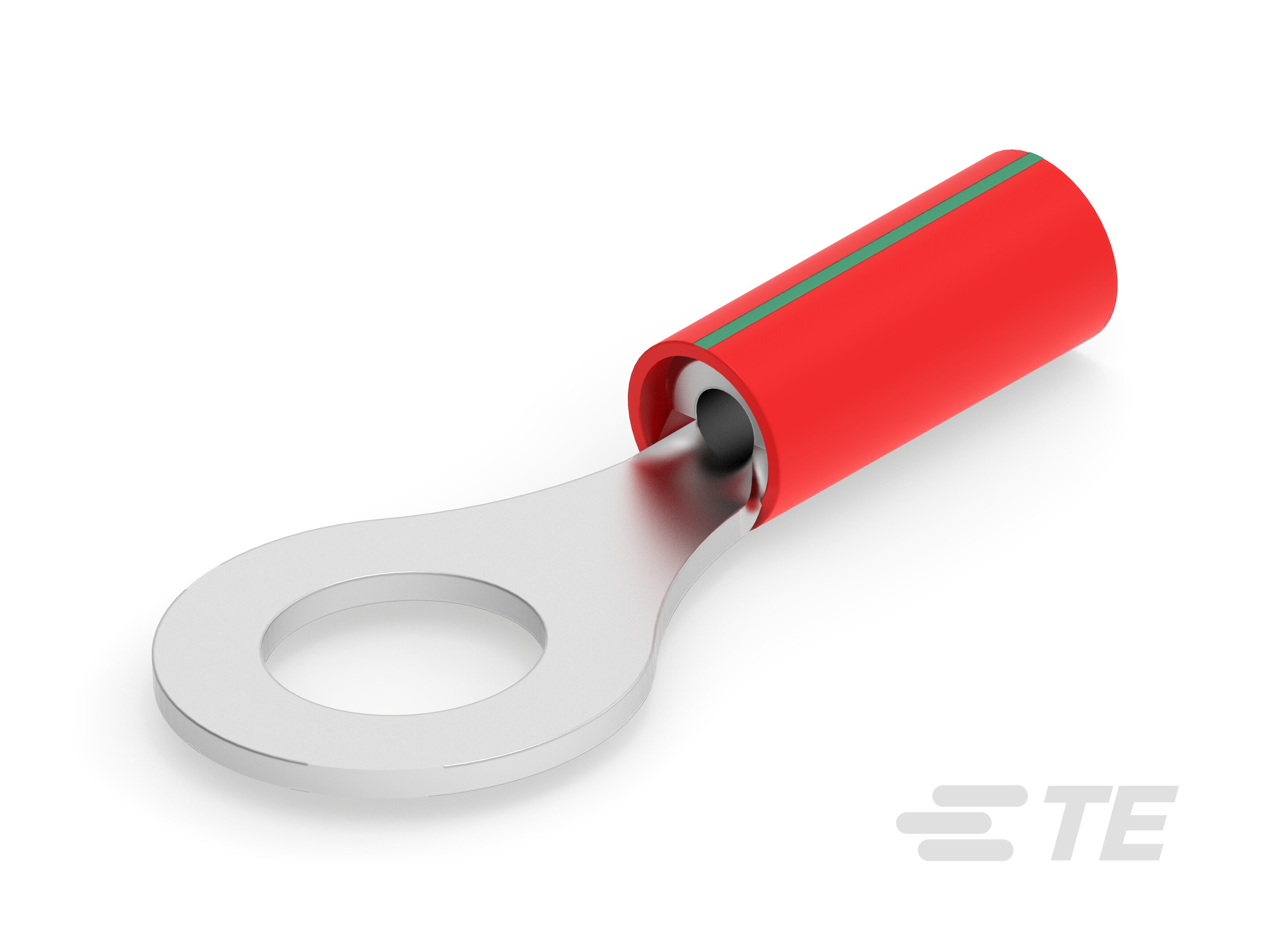

TE Connectivity Raychem Cable Protection 2-320571-3	Copper	Crimp	11.91 mm	0.469 in	0.25 Stud	Insulation Restriction	Red Green Stripe	22 AWG	1.14 in	28.96 mm	Tin	Nylon Polyamide (PA)	0.11 in	2.79 mm	0.97 mm	0.038 in	Free Hanging (In-Line)	Insulated	Circular	0.031 in	0.79 mm
TE Connectivity Raychem Cable Protection 2-320571-2	Copper	Crimp	11.91 mm	0.469 in	0.25 Stud	Serrated Termination	Red				Tin	Nylon Polyamide (PA)					Free Hanging (In-Line)	Insulated	Circular	0.031 in	0.79 mm	2.03 mm	3.18 mm	0.125 "	0.08 in	22 AWG	16 AWG

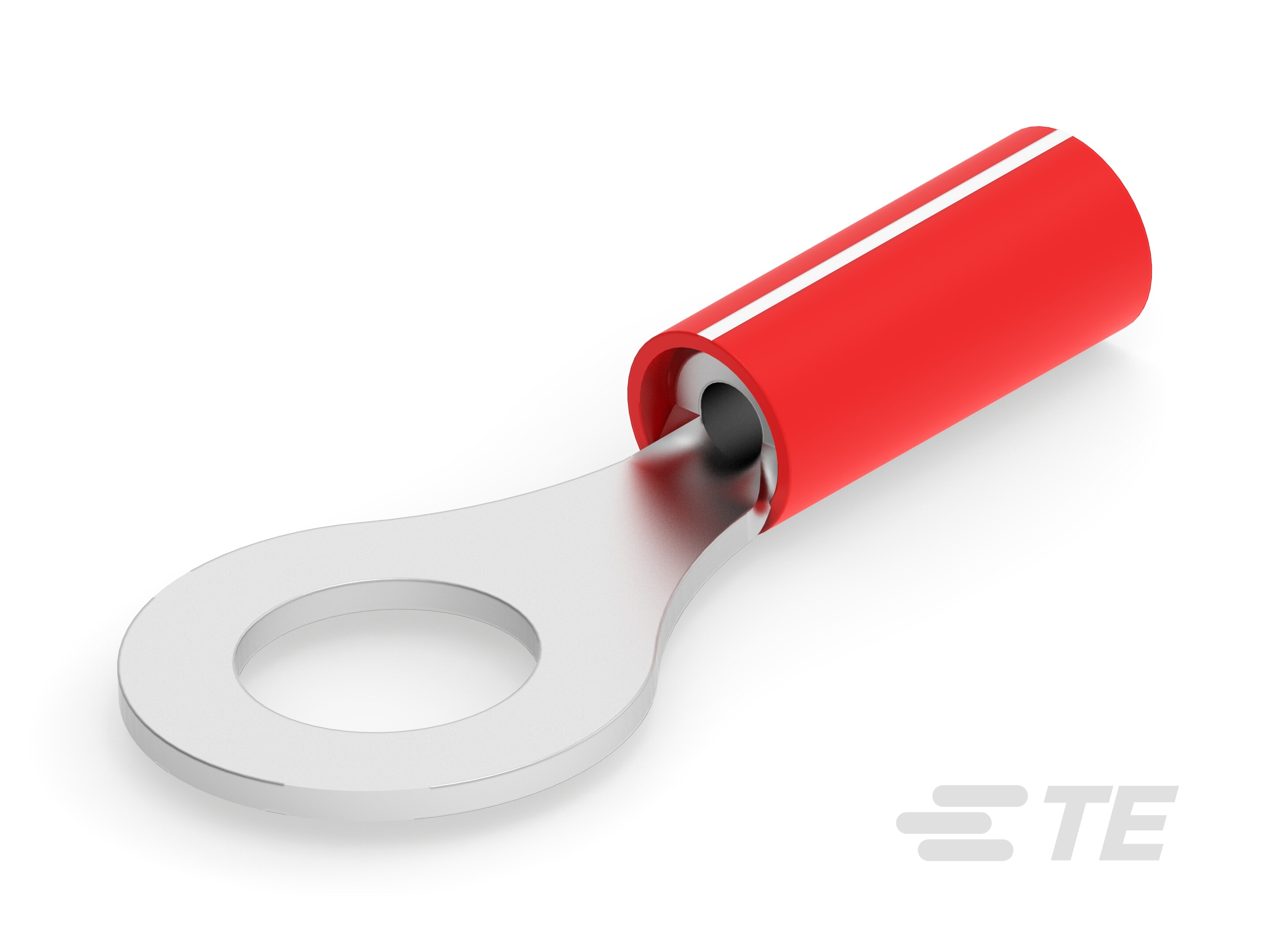

TE Connectivity Raychem Cable Protection 2-320571-5	Copper	Crimp	11.91 mm	0.469 in	0.25 Stud	Insulation Restriction	Red White Stripe	18 AWG	1.14 in	28.96 mm	Tin	Nylon Polyamide (PA)	2.79 mm		1.42 mm		Free Hanging (In-Line)	Insulated	Circular	0.031 in	0.79 mm							0.056 in	0.11 in
