CA 6 LS Series
Manufacturer: HIRSCHMANN
Beta
⌘K

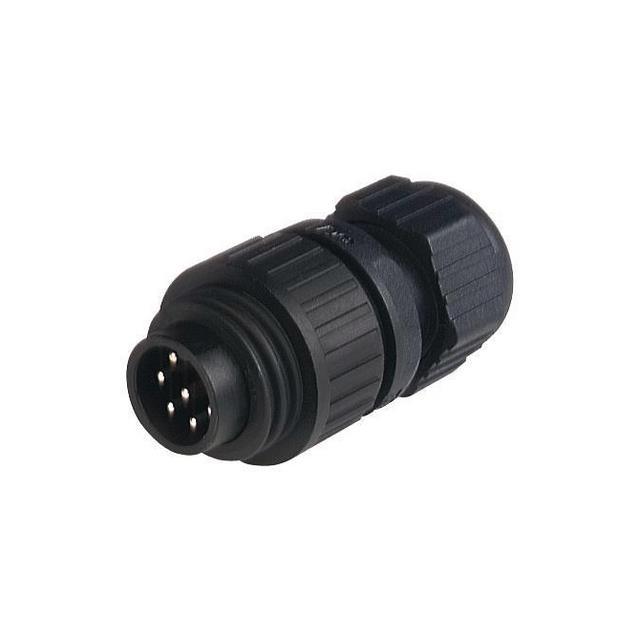

CONN RCPT MALE 7P SOLDER CUP
| Part | Primary Material | Fastening Type | Insert Material | Applications | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Color | Current Rating (Amps) | Backshell Material, Plating | Voltage Rating | Connector Type | Orientation | Shell Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Shielding | Mounting Type | Contact Finish - Mating | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HIRSCHMANN | Plastic | Threaded | Glass Filled Nylon 6/6 Polyamide (PA66) | Industrial | 0.236 in | 6 mm | 12 mm | 0.472 in | Black Red | 10 A | Polyamide (PA66) Nylon 6/6 Glass Filled | 250 VAC | Receptacle Male Pins | Keyed | Glass Filled Nylon 6/6 Polyamide (PA66) | 7 | 90 °C | -40 C | IP67 - Dust Tight Waterproof | Unshielded | Free Hanging (In-Line) | Silver | UL94 V-0 | Backshell Strain Relief |
