R16144 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

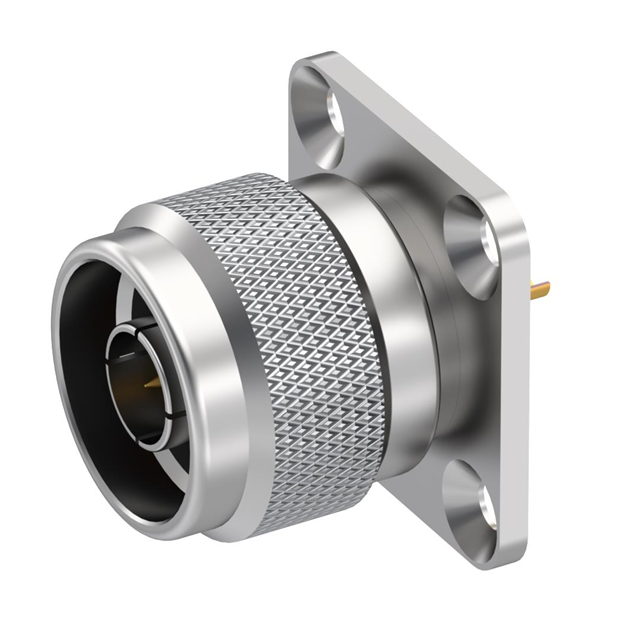

N / SQUARE FLANGE PLUG RECEPTACL
| Part | Center Contact Plating | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Dielectric Material | Mating Cycles | Body Finish | Body Material | Frequency - Max [Max] | Impedance | Housing Color | Center Contact Material | Mounting Feature | Number of Ports | Shield Termination | Contact Termination | Connector Style | Mounting Type | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 0.15 dB | 155 C | -55 C | 1400 V | Polytetrafluoroethylene (PTFE) | 500 | White Bronze | Brass | 11 GHz | 50 Ohms | Silver | Brass | Flange | 1 | Solder | Solder | N Type | Panel Mount Through Hole | Plug Male Pin | Threaded |
Radiall USA, Inc. | Gold | 0.15 dB | 155 C | -55 C | 1400 V | Polytetrafluoroethylene (PTFE) | 500 | White Bronze | Brass | 11 GHz | 50 Ohms | Silver | Beryllium Copper | Flange | 1 | Solder | Solder Cup | N Type | Panel Mount Through Hole | Plug Male Pin | Threaded |
 Radiall USA, Inc. | Gold | 0.15 dB | 155 C | -55 C | 1400 V | Polytetrafluoroethylene (PTFE) | 500 | White Bronze | Brass | 11 GHz | 50 Ohms | Silver | Beryllium Copper | Flange | 1 | Solder | Solder Cup | N Type | Panel Mount Through Hole | Plug Male Pin | Threaded |
 Radiall USA, Inc. | Gold | 0.15 dB | 155 C | -55 C | 1400 V | Polytetrafluoroethylene (PTFE) | 500 | White Bronze | Brass | 11 GHz | 50 Ohms | Silver | Brass | Flange | 1 | Solder | Solder | N Type | Panel Mount Through Hole | Plug Male Pin | Threaded |
