02S109 Series
Manufacturer: Rosenberger
Beta
⌘K

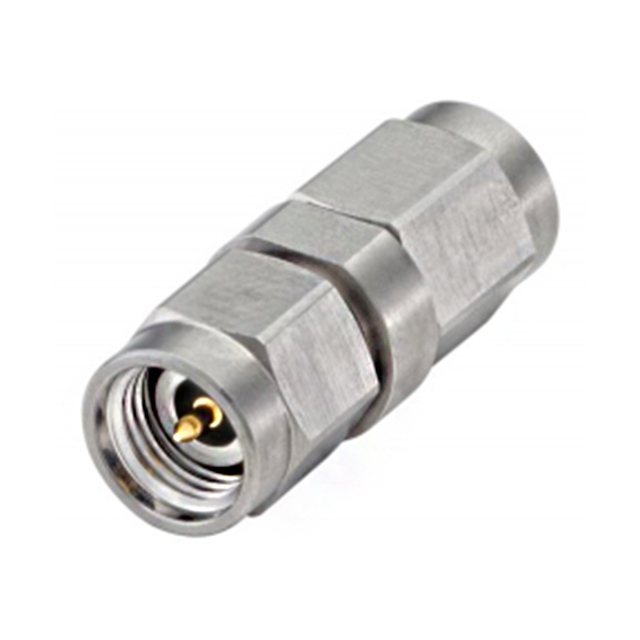

PRECISION 2.92/2.40 ADAPTER
| Part | Mating Cycles | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Body Material | Dielectric Material | Conversion Type | Mounting Type | Style | Adapter Type | Convert From (Adapter End) | Convert From (Adapter End) | Frequency - Max [Max] | Convert To (Adapter End) [custom] | Center Contact Plating | Adapter Series | Impedance | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Beryllium Copper | 85 °C | -40 C | 0.32 dB | Stainless Steel | Polystyrene (PS) | Between Series | Free Hanging (In-Line) | Straight | Plug to Plug | Plug Male Pin | 2.92 mm | 40 GHz | 2.4 mm | Gold | RPC-2.40 RPC-2.92 | 50 Ohms | Male to Male |
