170011 Series

Catalog

CONN RING CIRC 14-18AWG #10

Part	Termination	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Mounting Type	Features	Insulation	Terminal Type	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Wire Gauge [Min]	Wire Gauge [Max]	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Contact Finish

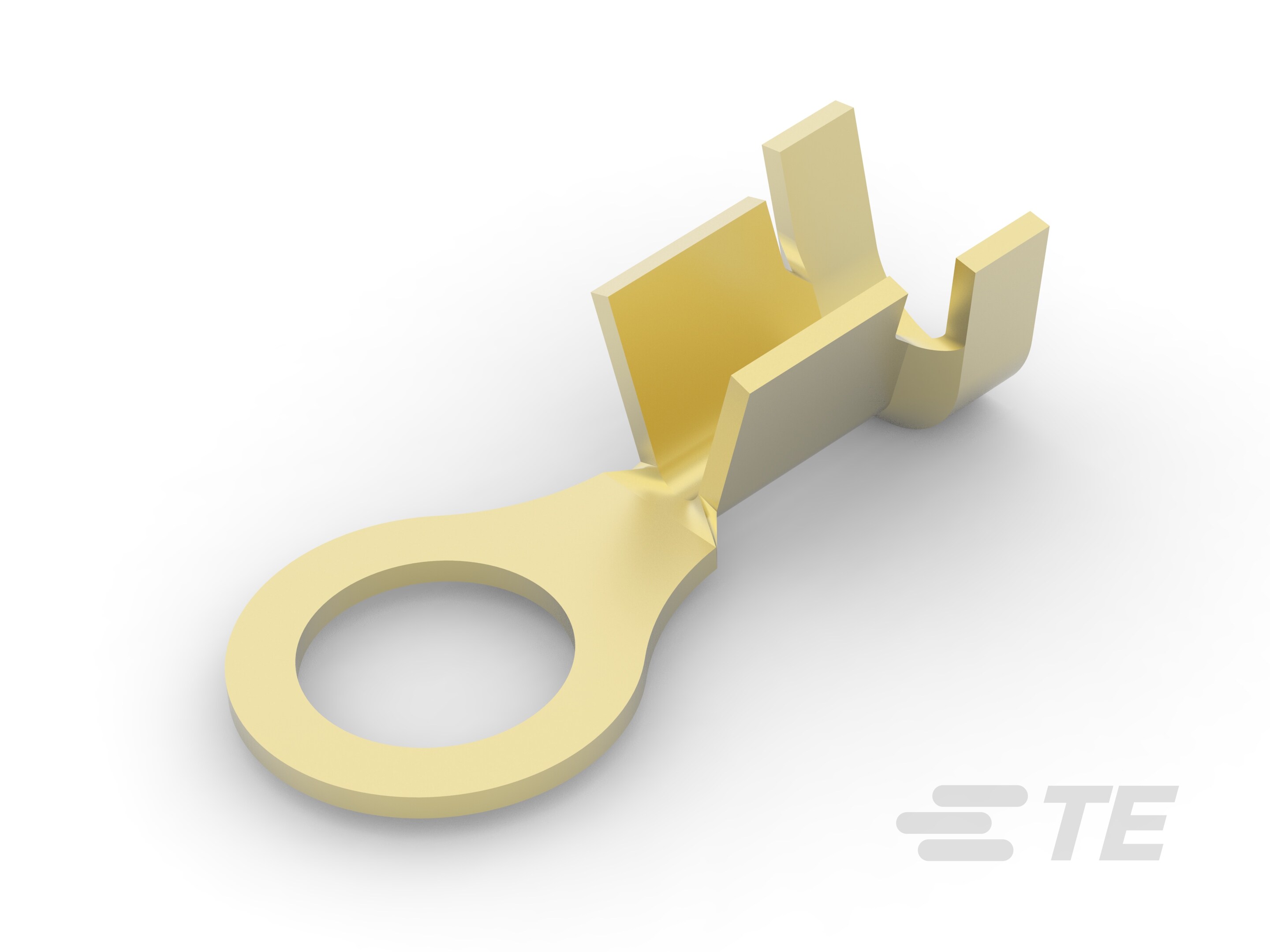

TE Connectivity Raychem Cable Protection 170011-3	Crimp	0.661 in	16.8 mm	10 Stud	Free Hanging (In-Line)	Serrated Termination	Non-Insulated	Circular	0.12 in	0.17 in	4.32 mm	3.05 mm	14 AWG	18 AWG	0.296 in	7.52 mm	Brass
TE Connectivity Raychem Cable Protection 170011-6	Crimp	0.661 in	16.8 mm	10 Stud	Free Hanging (In-Line)	Serrated Termination	Non-Insulated	Circular	0.12 in	0.17 in	4.32 mm	3.05 mm	14 AWG	18 AWG	0.296 in	7.52 mm	Brass	Tin
