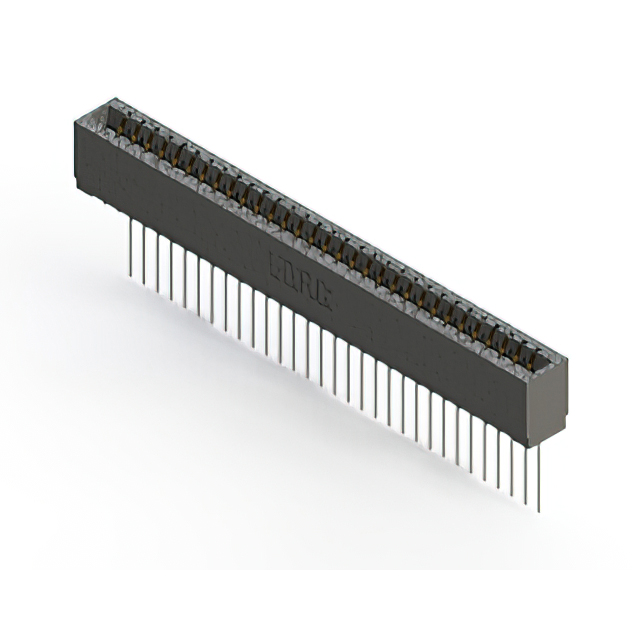

726-031 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 31POS 0.125

Part	Termination Rows	Material - Insulation	Number of Positions [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Number of Positions/Bay/Row [custom]	Mounting Type	Read Out	Contact Type	Card Type	Number of Rows	Gender	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]
EDAC Inc. 726-031-540-101	1	Polyester Thermoplastic	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	31	Through Hole	Single	Cantilever	Non Specified - Single Edge	1	Female	Black	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Gold	3.18 mm	0.125 in	-40 C	105 ░C
EDAC Inc. 726-031-527-101	1	Polyester Thermoplastic	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	31	Through Hole	Single	Cantilever	Non Specified - Single Edge	1	Female	Black	Press-Fit	30 Áin	0.76 Ám	Gold	3.18 mm	0.125 in	-40 C	105 ░C
EDAC Inc. 726-031-520-101	1	Polyester Thermoplastic	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	31	Through Hole	Single	Cantilever	Non Specified - Single Edge	1	Female	Black	Press-Fit	30 Áin	0.76 Ám	Gold	3.18 mm	0.125 in	-40 C	105 ░C
EDAC Inc. 726-031-541-101	1	Polyester Thermoplastic	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	31	Through Hole	Single	Cantilever	Non Specified - Single Edge	1	Female	Black	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Gold	3.18 mm	0.125 in	-40 C	105 ░C
EDAC Inc. 726-031-525-101	1	Polyester Thermoplastic	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	31	Through Hole	Single	Cantilever	Non Specified - Single Edge	1	Female	Black	Press-Fit	30 Áin	0.76 Ám	Gold	3.18 mm	0.125 in	-40 C	105 ░C
EDAC Inc. 726-031-545-101	1	Polyester Thermoplastic	31	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	31	Through Hole	Single	Cantilever	Non Specified - Single Edge	1	Female	Black	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Gold	3.18 mm	0.125 in	-40 C	105 ░C
