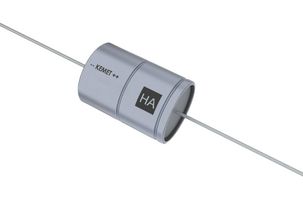

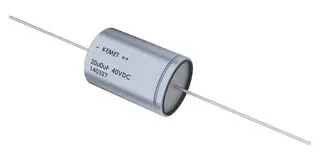

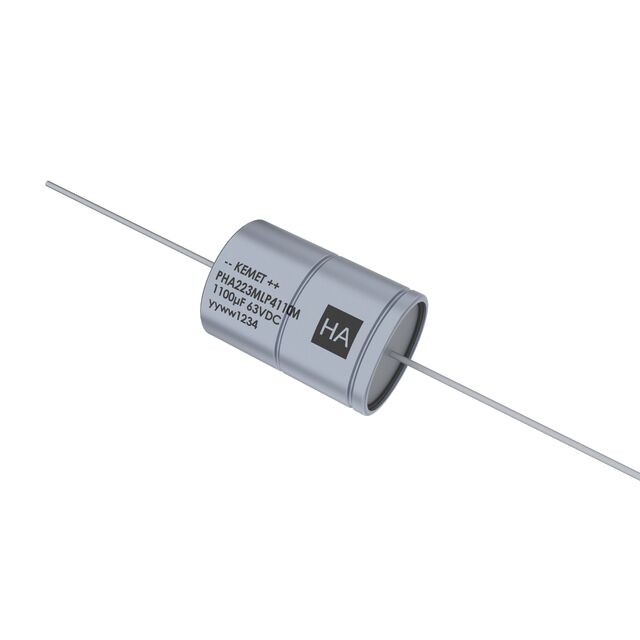

PHA223M Series
Manufacturer: KEMET
Beta
⌘K
HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 780 ΜF, ± 20%, 63 V, AXIAL LEADED, 0.0047 OHM
| Part | Tolerance | Capacitance | ESR (Equivalent Series Resistance) | Ripple Current @ High Frequency | Type | Ratings | Features | Operating Temperature [Max] | Operating Temperature [Min] | Lifetime @ Temp. | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage - Rated | Package / Case | Ripple Current @ Low Frequency | Applications | Mounting Type | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 20 % | 780 µF | 87 mOhm | 38.9 A | Hybrid | AEC-Q200 | High Vibration | 125 °C | -40 C | 8000 Hrs | 16.2 mm | 1.366 in | 34.7 mm | 0.638 in | 63 V | Axial Can | 7.78 A | Automotive | Through Hole | ||
KEMET | 20 % | 540 µF | 124 mOhm | 38 A | Hybrid | AEC-Q200 | High Vibration | 125 °C | -40 C | 8000 Hrs | 16.2 mm | 0.638 in | 63 V | Axial Can | 7.6 A | Automotive | Through Hole | 26.7 mm | 1.051 " | ||
 KEMET | 20 % | 800 µF | 85 mOhm | 42.5 A | Hybrid | AEC-Q200 | High Vibration | 125 °C | -40 C | 8000 Hrs | 18.2 mm | 1.051 in | 26.7 mm | 0.717 " | 63 V | Axial Can | 8.5 A | Automotive | Through Hole | ||
KEMET | 20 % | 1100 µF | 62 mOhm | 44 A | Hybrid | AEC-Q200 | High Vibration | 125 °C | -40 C | 8000 Hrs | 18.2 mm | 1.366 in | 34.7 mm | 0.717 " | 63 V | Axial Can | 8.8 A | Automotive | Through Hole |
