A1 Series

Catalog

TERMINALS BATTERY CABLE LUG, 1 AWG, 3/8" STUD

Part	Insulation	Mounting Type	Thickness	Thickness	Terminal Type	Termination	Contact Material	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Wire Gauge	Contact Finish	Width - Outer Edges	Width - Outer Edges	Length - Overall

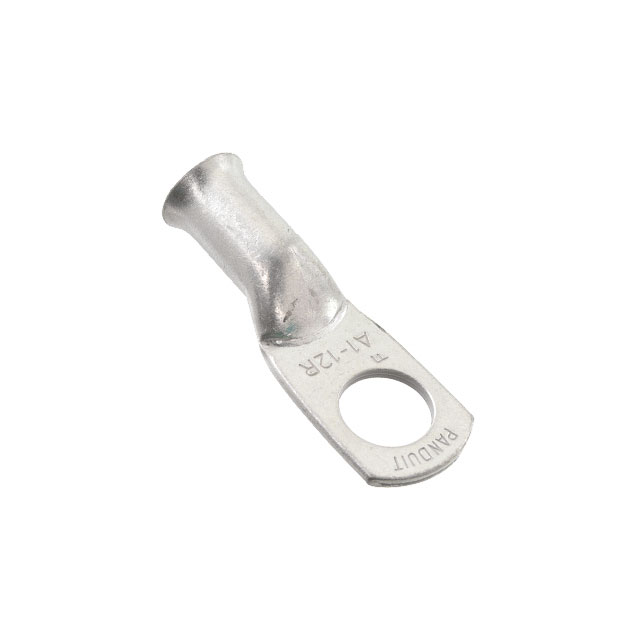

Panduit Corp A1-12R-C	Non-Insulated	Free Hanging (In-Line)	2.29 mm	0.09 in	Circular Tubular (Battery Lugs)	Crimp	Copper	0.5 Stud	56.64 mm	2.23 in	1 AWG	Electro-Tin	20.07 mm	0.79 in
Panduit Corp A1-38R-C	Non-Insulated	Free Hanging (In-Line)	2.79 mm	0.11 in	Circular Tubular (Battery Lugs)	Crimp	Copper	0.375 Stud		1.99 in	1 AWG	Electro-Tin	17.78 mm	0.7 "	50.55 mm
Panduit Corp A1-56R-C	Non-Insulated	Free Hanging (In-Line)	2.79 mm	0.11 in	Circular Tubular (Battery Lugs)	Crimp	Copper	0.3125 Stud	49.78 mm	1.96 in	1 AWG	Electro-Tin	17.78 mm	0.7 "
Panduit Corp A1-14R-C	Non-Insulated	Free Hanging (In-Line)	2.79 mm	0.11 in	Circular Tubular (Battery Lugs)	Crimp	Copper	0.25 Stud	48.26 mm	1.9 in	1 AWG	Electro-Tin	17.78 mm	0.7 "
