2PH1 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 15POS 2MM

Part	Contact Finish Thickness - Post	Number of Rows	Contact Shape	Connector Type	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Material	Mounting Type	Insulation Color	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Material	Overall Contact Length	Overall Contact Length	Termination	Shrouding	Fastening Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [custom]	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Number of Positions	Voltage Rating

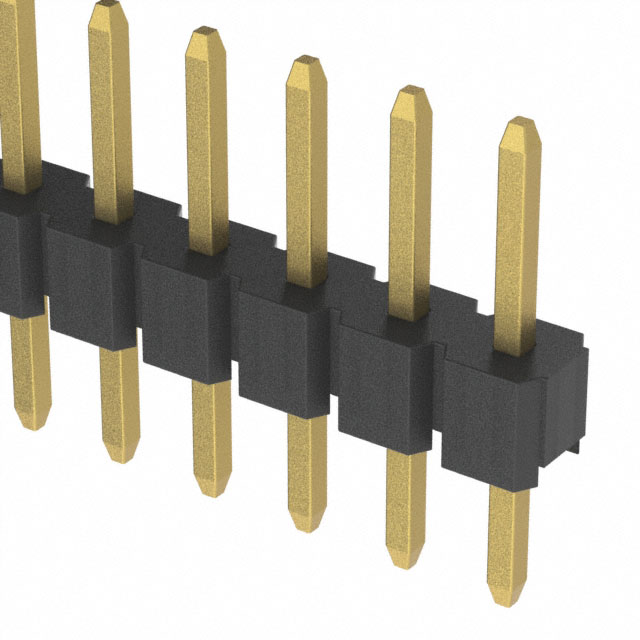

Adam Tech 2PH1-15-UA	Flash	1	Square	Header	Flash	UL94 V-0	Polybutylene Terephthalate (PBT)	Through Hole	Black	All	0.154 in	3.91 mm	Male Pin	0.079 "	2 mm	Brass	0.343 in	8.7 mm	Solder	Unshrouded	Push-Pull	Gold	-55 C	105 ░C	0.11 in	2.79 mm	2 mm	0.079 in	Gold	15	250 VAC
Adam Tech 2PH1-06-UA	Flash	1	Square	Header	Flash	UL94 V-0	Polybutylene Terephthalate (PBT)	Through Hole	Black	All	0.154 in	3.91 mm	Male Pin	0.079 "	2 mm	Brass	0.343 in	8.7 mm	Solder	Unshrouded	Push-Pull	Gold	-55 C	105 ░C	0.11 in	2.79 mm	2 mm	0.079 in	Gold	6	250 VAC

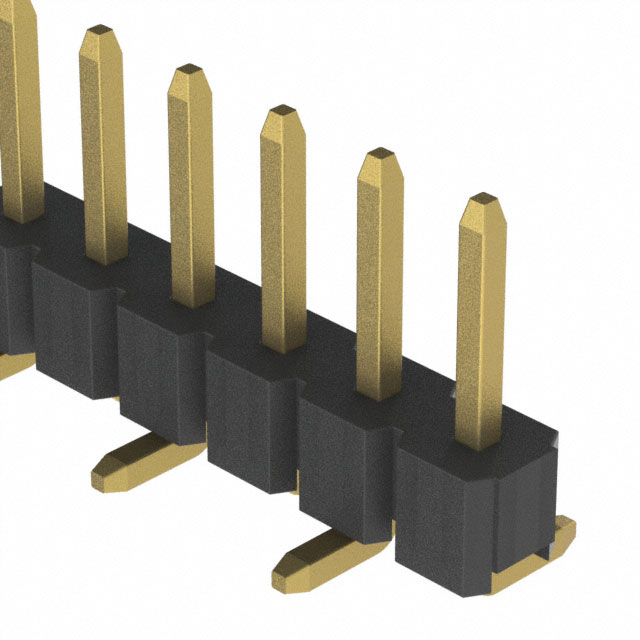

Adam Tech 2PH1-16-UA-SMT-B	Flash	1	Square	Header	Flash	UL94 V-0	Thermoplastic	Surface Mount	Black	All	0.157 in	4 mm	Male Pin	0.079 "	2 mm	Brass			Solder	Unshrouded	Push-Pull	Gold	-40 C	105 ░C			2 mm	0.079 in	Gold	16	250 VAC
Adam Tech 2PH1-06-UA-SMT-A	Flash	1	Square	Header	Flash	UL94 V-0	Thermoplastic	Surface Mount	Black	All	0.157 in	4 mm	Male Pin	0.079 "	2 mm	Brass			Solder	Unshrouded	Push-Pull	Gold	-40 C	105 ░C			2 mm	0.079 in	Gold	6	250 VAC

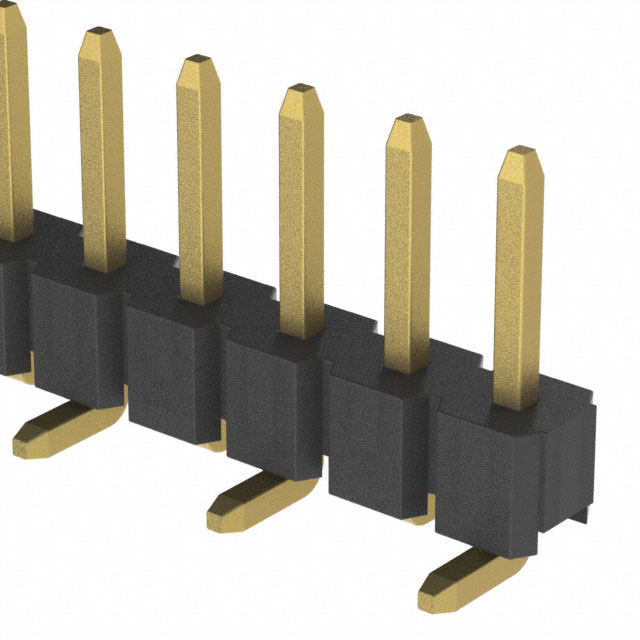

Adam Tech 2PH1-18-UA-SMT-A	Flash	1	Square	Header	Flash	UL94 V-0	Thermoplastic	Surface Mount	Black	All	0.157 in	4 mm	Male Pin	0.079 "	2 mm	Brass			Solder	Unshrouded	Push-Pull	Gold	-40 C	105 ░C			2 mm	0.079 in	Gold	18	250 VAC
Adam Tech 2PH1-09-UA	Flash	1	Square	Header	Flash	UL94 V-0	Polybutylene Terephthalate (PBT)	Through Hole	Black	All	0.154 in	3.91 mm	Male Pin	0.079 "	2 mm	Brass	0.343 in	8.7 mm	Solder	Unshrouded	Push-Pull	Gold	-55 C	105 ░C	0.11 in	2.79 mm	2 mm	0.079 in	Gold	9	250 VAC

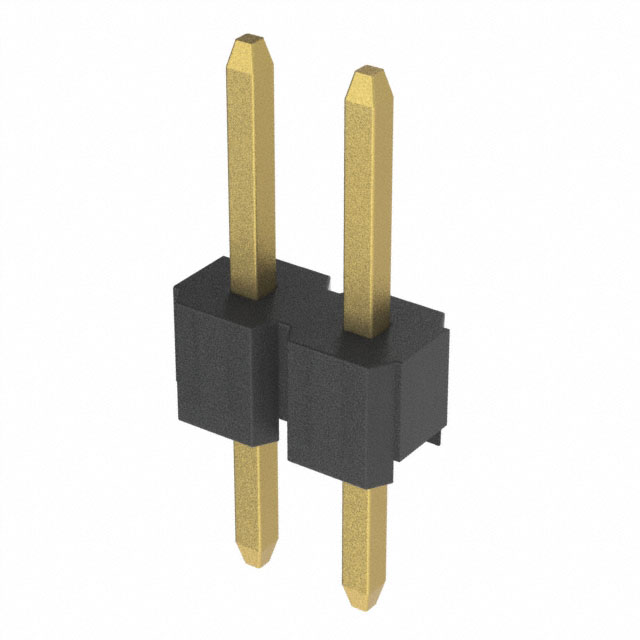

Adam Tech 2PH1-02-UA	Flash	1	Square	Header	Flash	UL94 V-0	Polybutylene Terephthalate (PBT)	Through Hole	Black	All	0.154 in	3.91 mm	Male Pin	0.079 "	2 mm	Brass	0.343 in	8.7 mm	Solder	Unshrouded	Push-Pull	Gold	-55 C	105 ░C	0.11 in	2.79 mm	2 mm	0.079 in	Gold	2	250 VAC
Adam Tech 2PH1-16-UA-SMT-A	Flash	1	Square	Header	Flash	UL94 V-0	Thermoplastic	Surface Mount	Black	All	0.157 in	4 mm	Male Pin	0.079 "	2 mm	Brass			Solder	Unshrouded	Push-Pull	Gold	-40 C	105 ░C			2 mm	0.079 in	Gold	16	250 VAC

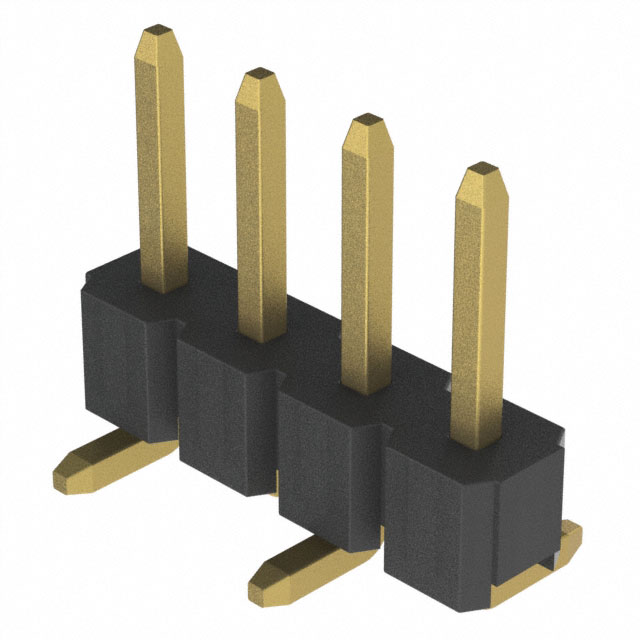

Adam Tech 2PH1-04-UA-SMT-B	Flash	1	Square	Header	Flash	UL94 V-0	Thermoplastic	Surface Mount	Black	All	0.157 in	4 mm	Male Pin	0.079 "	2 mm	Brass			Solder	Unshrouded	Push-Pull	Gold	-40 C	105 ░C			2 mm	0.079 in	Gold	4	250 VAC
Adam Tech 2PH1-13-UA	Flash	1	Square	Header	Flash	UL94 V-0	Polybutylene Terephthalate (PBT)	Through Hole	Black	All	0.154 in	3.91 mm	Male Pin	0.079 "	2 mm	Brass	0.343 in	8.7 mm	Solder	Unshrouded	Push-Pull	Gold	-55 C	105 ░C	0.11 in	2.79 mm	2 mm	0.079 in	Gold	13	250 VAC
