DC0011/06 Series

Catalog

THERM PAD 18.03MMX12.7MM RED

Part	Shelf Life	Shelf Life Start	Thickness	Thickness	Thermal Conductivity	Usage	Shape	Color	Type	Material	Outline [y]	Outline [x]	Adhesive	Thickness	Backing, Carrier
t-Global Technology DC0011/06-TG-A482K-0.1-0	24 Months	Date of Purchase	0.1 mm	0.0039 in	2.3 W/m-K	TO-220	Rectangular	Red	Die-Cut Pad Sheet	Silicone	12.7 mm	18.03 mm

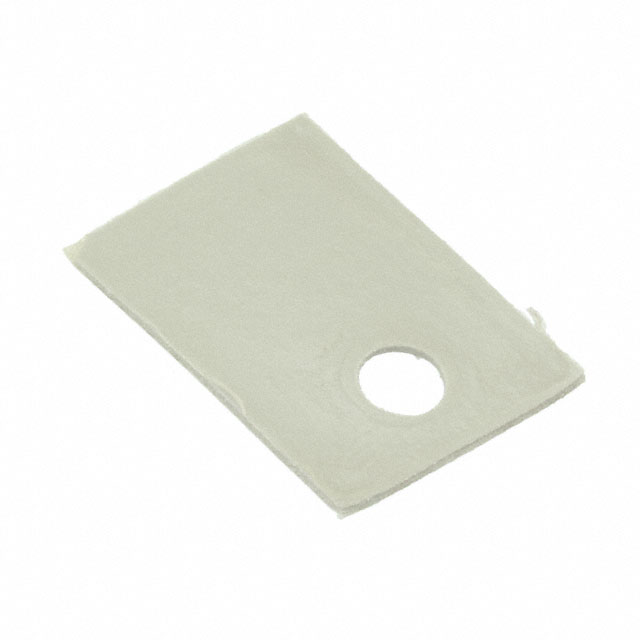

t-Global Technology DC0011/06-TG-A486G-0.3-2A	12 Months	Date of Purchase	0.305 mm	0.012 in	6 W/m-K	TO-220	Rectangular	Gray	Die-Cut Pad Sheet		12.7 mm	18.03 mm	Adhesive - Both Sides

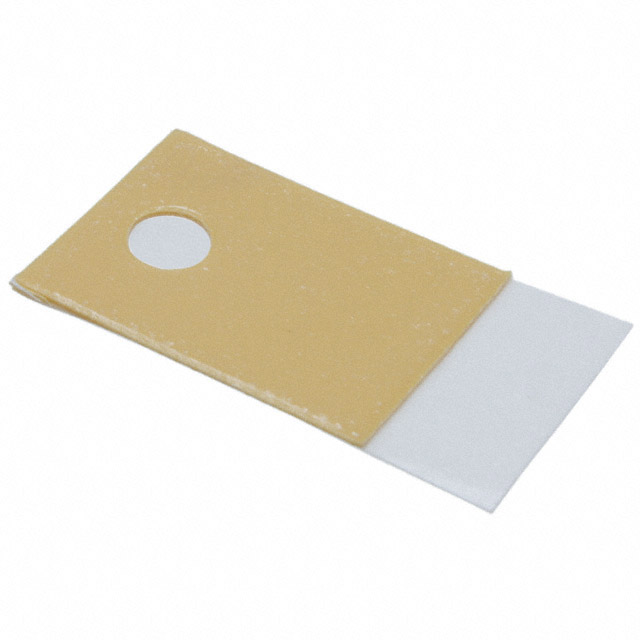

t-Global Technology DC0011/06-TG-A373F-0.25-2A	12 Months		10 mils		1.4 W/m-K	TO-220	Rectangular	Yellow	Die-Cut Pad Sheet		12.7 mm	18.03 mm	Adhesive - Both Sides	0.01 in
t-Global Technology DC0011/06-TG-AH482-2.0-0	24 Months		0.203 mm	0.008 in	2.2 W/m-K	TO-220	Rectangular	Red	Die-Cut Pad Sheet		12.7 mm	18.03 mm

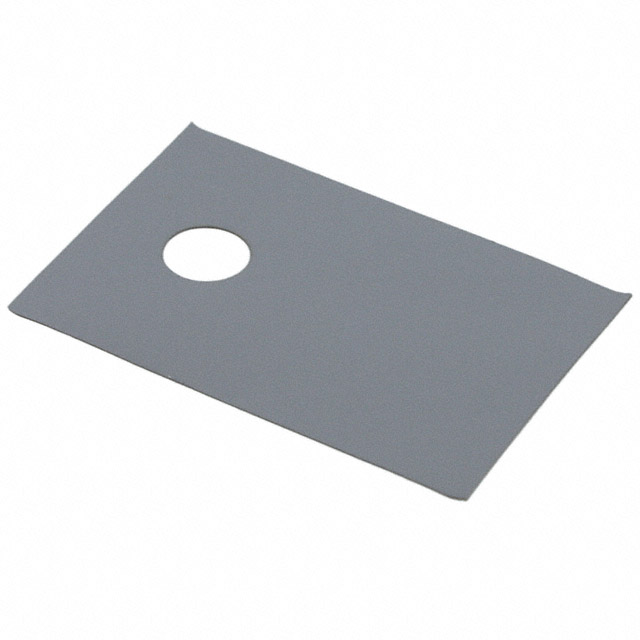

t-Global Technology DC0011/06-TI900-0.12-0	24 Months		5 mils	0.005 in	1.8 W/m-K	TO-220	Rectangular	White	Die-Cut Pad Sheet	Silicone	12.7 mm	18.03 mm			Viscose

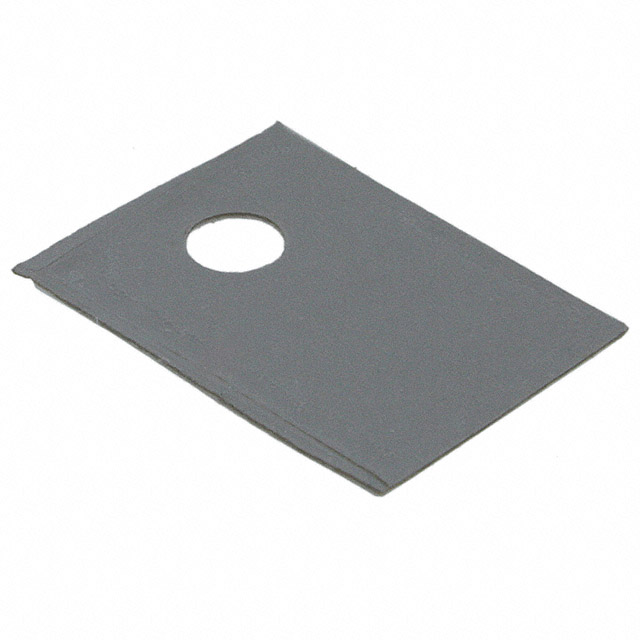

t-Global Technology DC0011/06-TI900-0.12-2A	24 Months		5 mils	0.005 in	1.8 W/m-K	TO-220	Rectangular	White	Die-Cut Pad Sheet	Silicone	12.7 mm	18.03 mm	Adhesive - Both Sides		Viscose
