NRPN351 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

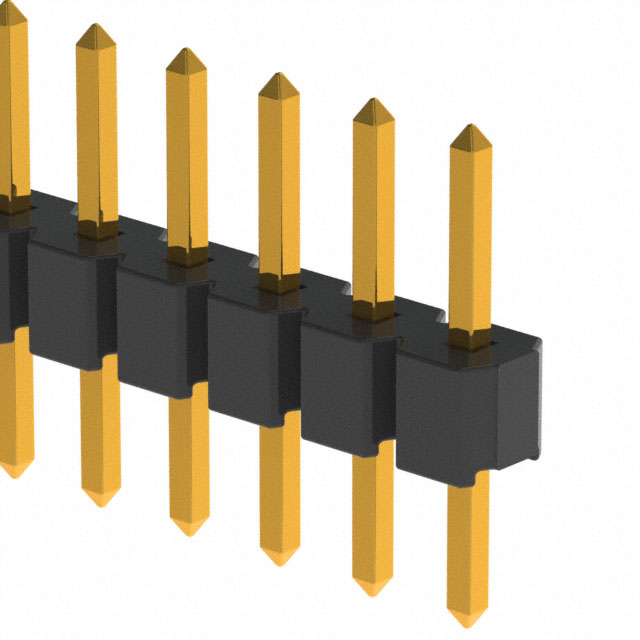

CONN HEADER VERT 35POS 2MM
| Part | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Style | Contact Length - Mating | Contact Length - Mating | Number of Rows | Contact Length - Post [custom] | Contact Length - Post | Contact Finish - Post | Current Rating (Amps) | Overall Contact Length | Overall Contact Length | Insulation Color | Termination | Shrouding | Contact Type | Contact Material | Number of Positions | Connector Type | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Insulation Material | Voltage Rating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Fastening Type | Mounting Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | 0.079 " | 2 mm | Board to Board Cable | 0.141 in | 3.6 mm | 1 | 0.11 in | 2.79 mm | Gold | 2 A | 8.4 mm | 0.331 in | Black | Solder | Unshrouded | Male Pin | Brass | 35 | Header | UL94 V-0 | 2 mm | 0.079 in | Flash | Nylon 6T Polyamide (PA6T) | 150 VDC | All | -40 C | 105 ░C | Gold | Push-Pull | Through Hole | Square |
