AEE02B Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K

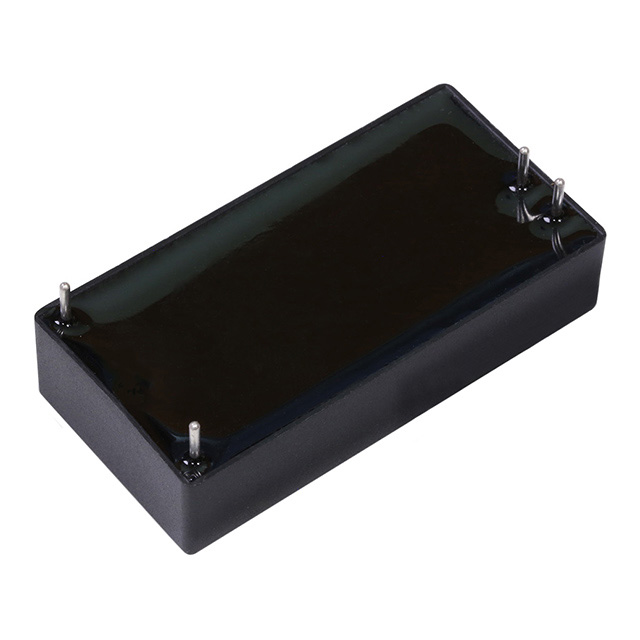

MODULE DC-DC 12VIN 1-OUT 12V 1.67A 20W 4-PIN DIP MODULE
| Part | Voltage - Output 1 | Features | Number of Outputs | Applications | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Package / Case | Mounting Type | Efficiency | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 12 V | OCP OVP SCP | 1 | ITE (Commercial) Medical | 20 W | 9 V | 18 V | 5-DIP Module 4 Leads | Through Hole | 89 % | Isolated Module | 80 ¯C | -40 °C | 4.2 kV | 1.67 A | 25.4 mm | 0.47 " | 1 " | 50.8 mm | 2 in | 12 mm |
ARTESYN / Advanced Energy | 12 V | OCP OVP SCP | 1 | ITE (Commercial) Medical | 20 W | 18 V | 36 V | 5-DIP Module 4 Leads | Through Hole | 89 % | Isolated Module | 80 ¯C | -40 °C | 4.2 kV | 1.67 A | 25.4 mm | 0.47 " | 1 " | 50.8 mm | 2 in | 12 mm |
ARTESYN / Advanced Energy | 12 V | OCP OVP SCP | 1 | ITE (Commercial) Medical | 20 W | 36 V | 75 V | 5-DIP Module 4 Leads | Through Hole | 89 % | Isolated Module | 80 ¯C | -40 °C | 4.2 kV | 1.67 A | 25.4 mm | 0.47 " | 1 " | 50.8 mm | 2 in | 12 mm |
