087049 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 42POS 2MM

Part	Insulation Height	Insulation Height	Number of Positions	Applications	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Termination	Contact Shape	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Contact Finish - Post	Contact Type	Contact Material
Molex 0870494216	4.3 mm	0.169 "	42	Automotive General Purpose Telecommunications	0.079 in	2 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Solder	Square	4 mm	0.157 in	Header	0.102 in	2.6 mm	Unshrouded	Black	15 µin	0.38 µm	2	74.8 Áin	1.9 Ám	Push-Pull	Through Hole Right Angle	All	UL94 V-0	0.079 in	2 mm	Gold	Tin-Lead	Male Pin	Phosphor Bronze
Molex 0870493016	4.3 mm	0.169 "	30	Automotive General Purpose Telecommunications	0.079 in	2 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Solder	Square	4 mm	0.157 in	Header	0.102 in	2.6 mm	Unshrouded	Black	15 µin	0.38 µm	2	74.8 Áin	1.9 Ám	Push-Pull	Through Hole Right Angle	All	UL94 V-0	0.079 in	2 mm	Gold	Tin-Lead	Male Pin	Phosphor Bronze

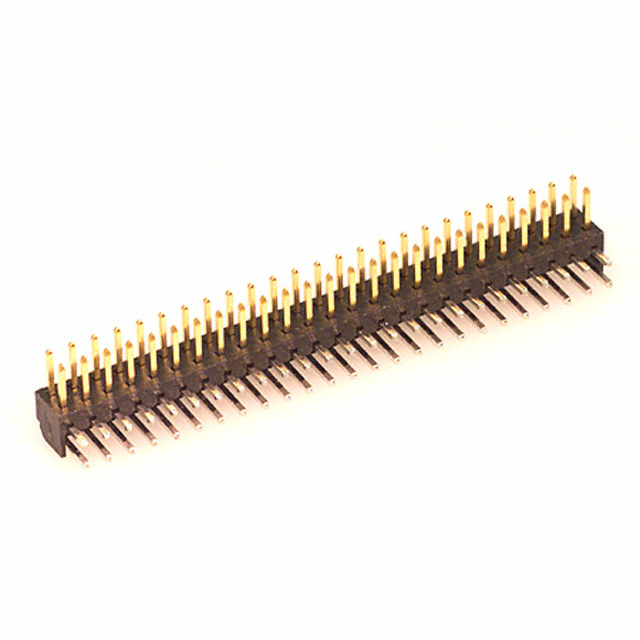

Molex 0870495016	4.3 mm	0.169 "	50	Automotive General Purpose Telecommunications	0.079 in	2 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Solder	Square	4 mm	0.157 in	Header	0.102 in	2.6 mm	Unshrouded	Black	15 µin	0.38 µm	2	74.8 Áin	1.9 Ám	Push-Pull	Through Hole Right Angle	All	UL94 V-0	0.079 in	2 mm	Gold	Tin-Lead	Male Pin	Phosphor Bronze

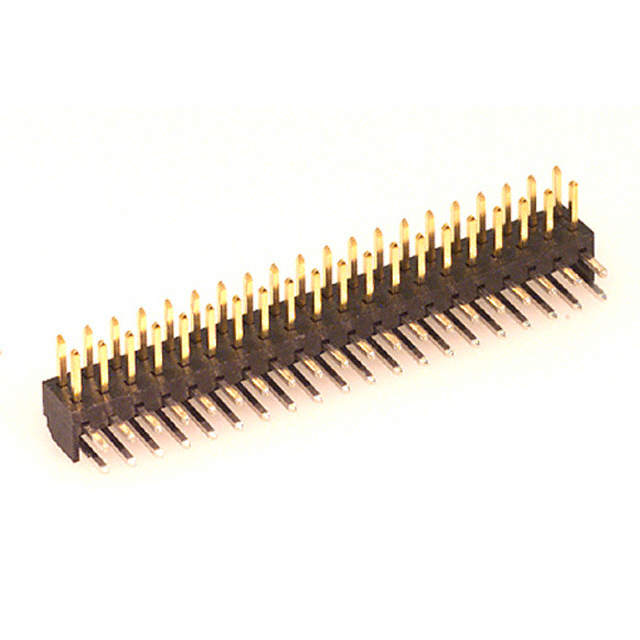

Molex 0870494016	4.3 mm	0.169 "	40	Automotive General Purpose Telecommunications	0.079 in	2 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Solder	Square	4 mm	0.157 in	Header	0.102 in	2.6 mm	Unshrouded	Black	15 µin	0.38 µm	2	74.8 Áin	1.9 Ám	Push-Pull	Through Hole Right Angle	All	UL94 V-0	0.079 in	2 mm	Gold	Tin-Lead	Male Pin	Phosphor Bronze
Molex 0870491016	4.3 mm	0.169 "	10	Automotive General Purpose Telecommunications	0.079 in	2 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Solder	Square	4 mm	0.157 in	Header	0.102 in	2.6 mm	Unshrouded	Black	15 µin	0.38 µm	2	74.8 Áin	1.9 Ám	Push-Pull	Through Hole Right Angle	All	UL94 V-0	0.079 in	2 mm	Gold	Tin-Lead	Male Pin	Phosphor Bronze
Molex 0870493616	4.3 mm	0.169 "	36	Automotive General Purpose Telecommunications	0.079 in	2 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Solder	Square	4 mm	0.157 in	Header	0.102 in	2.6 mm	Unshrouded	Black	15 µin	0.38 µm	2	74.8 Áin	1.9 Ám	Push-Pull	Through Hole Right Angle	All	UL94 V-0	0.079 in	2 mm	Gold	Tin-Lead	Male Pin	Phosphor Bronze
Molex 0870494816	4.3 mm	0.169 "	48	Automotive General Purpose Telecommunications	0.079 in	2 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Solder	Square	4 mm	0.157 in	Header	0.102 in	2.6 mm	Unshrouded	Black	15 µin	0.38 µm	2	74.8 Áin	1.9 Ám	Push-Pull	Through Hole Right Angle	All	UL94 V-0	0.079 in	2 mm	Gold	Tin-Lead	Male Pin	Phosphor Bronze
