3RT1055 Series

Manufacturer: Siemens

Catalog

CONTACTOR S6 150A NO COIL 3P BAR

Part	Operate Time	Release Time	Contact Rating (Current)	Features	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switching Voltage [Max]	Termination Style	Coil Power	Coil Voltage [Max]	Coil Voltage [Min]
Siemens 3RT10556LA06	95 ms	60 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal
Siemens 3RT10556NF36	75 ms	90 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	320 W	127 VAC/DC	96 VAC/DC

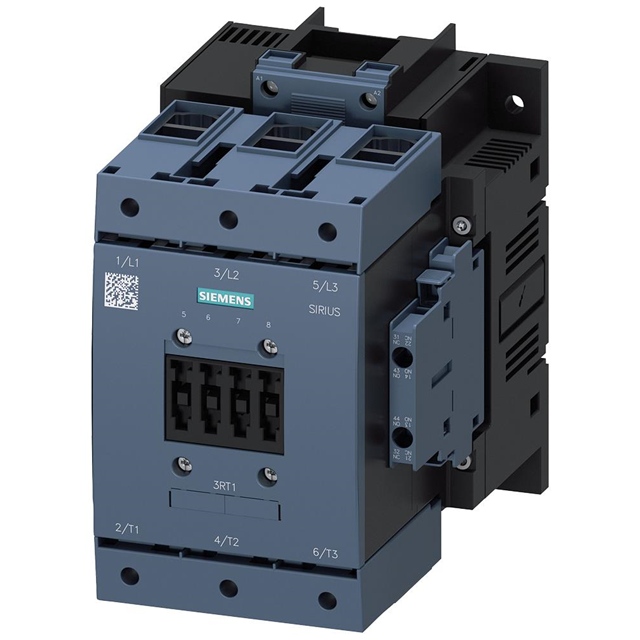

Siemens 3RT10557AB36	95 ms	60 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	360 W	26 VAC/DC	23 VAC/DC
Siemens 3RT10552NF36	75 ms	90 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	320 W	127 VAC/DC	96 VAC/DC
Siemens 3RT10556NB36	75 ms	90 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	320 W	27.3 VAC/DC	21 VAC/DC
Siemens 3RT10556AS36	95 ms	60 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	360 W	550 VAC/DC	500 VAC

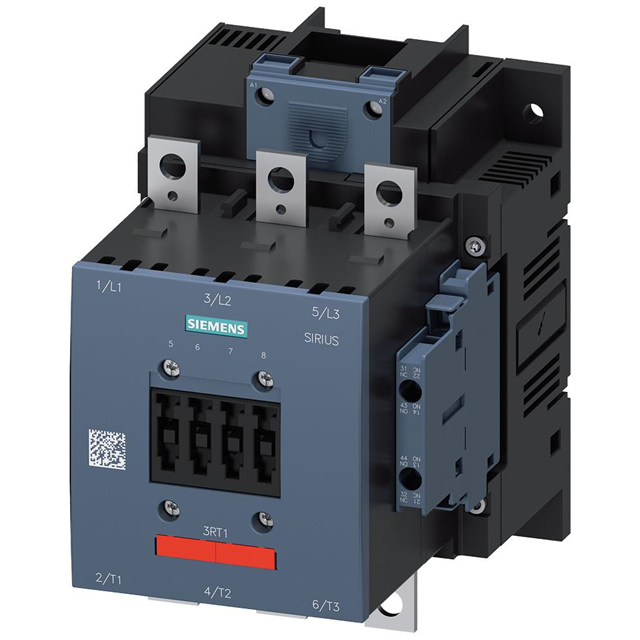

Siemens 3RT10556AB363PA0	95 ms	60 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	360 W	26 VAC/DC	23 VAC/DC
Siemens 3RT10556AT36	95 ms	60 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	360 W	600 VAC	575 VAC

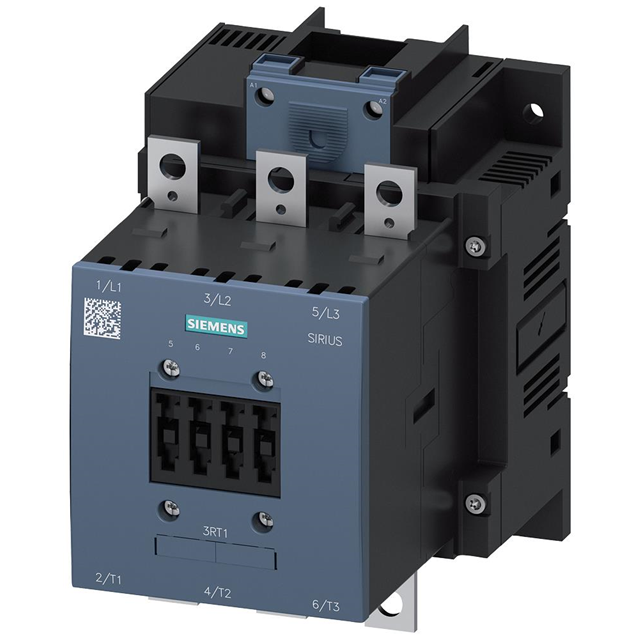

Siemens 3RT10556AP30	95 ms	60 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	360 W	240 VAC	220 VAC

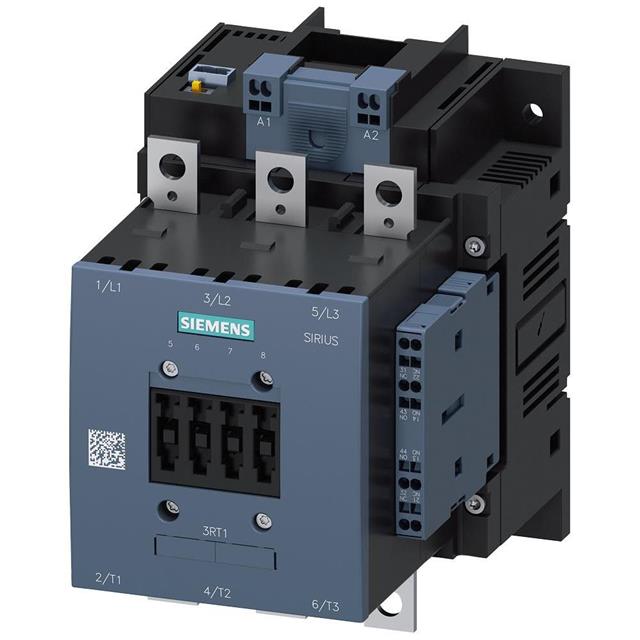

Siemens 3RT10552NP36	75 ms	90 ms	150 A	Auxiliary Contacts	3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	Screw Terminal	320 W	277 VAC	200 VAC/DC
