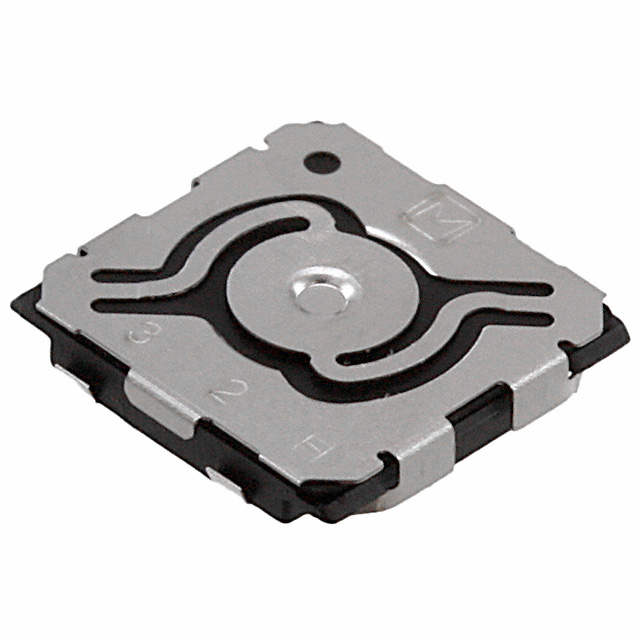

EVQ-Q0 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACT SPST-NO 0.02A 15V
| Part | Termination Style | Illumination | Circuit | Actuator Orientation | Actuator Type | Outline [y] | Outline [x] | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Switch Function | Contact Rating @ Voltage [x] | Operating Force [Max] | Operating Force [Min] | Switch Travel [diameter] | Actuator Height off PCB, Vertical [z] | Features | Switch Travel [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | SMD (SMT) Tab | Non-Illuminated | SPST-NO x 2 | Side Actuated | Rectangular Button | 3.75 mm | 6.2 mm | 200000 Cycles | -20 C | 70 °C | Edge Mount Right Angle | Off-Mom-Mom | 0.02 A 15 VDC | 260 gf | 100 gf | 0.4 mm 0.5 mm | |||
 Panasonic Industrial Automation Sales | J Lead | Non-Illuminated | SPST-NO x 2 | Top Actuated | Standard | 6 mm | 6 mm | 30000 Steps | -20 C | 70 °C | Surface Mount | Off-Mom-Mom | 0.02 A 15 VDC | 260 gf | 70 gf | 0.95 mm | Push Plate | 0.4 mm 0.6 mm |
