430005 Series

Catalog

CONN BARRIER STRIP 2CIRC 0.438"

Part	Material - Insulation	Operating Temperature	Mounting Type	Material Flammability Rating	Barrier Type	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Block Type	Top Termination	Number of Wire Entries	Current Rating (Amps)	Pitch [x]	Pitch [x]	Number of Rows	Bottom Termination	Features	Number of Circuits	Voltage Rating	Number of Wire Entries [custom]
Curtis Industries 430005-02-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	2	20 A	0.438 in	11.12 mm	1	Closed	Flange	2	600 V
Curtis Industries 430005-26-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	26	20 A	0.438 in	11.12 mm	1	Closed	Flange	26	600 V
Curtis Industries 430005-14-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	14	20 A	0.438 in	11.12 mm	1	Closed	Flange	14	600 V
Curtis Industries 430005-20-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	20	20 A	0.438 in	11.12 mm	1	Closed	Flange	20	600 V
Curtis Industries 430005-13-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	13	20 A	0.438 in	11.12 mm	1	Closed	Flange	13	600 V
Curtis Industries 430005-06-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	6	20 A	0.438 in	11.12 mm	1	Closed	Flange	6	600 V
Curtis Industries 430005-25-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	25	20 A	0.438 in	11.12 mm	1	Closed	Flange	25	600 V
Curtis Industries 430005-03-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	3	20 A	0.438 in	11.12 mm	1	Closed	Flange	3	600 V

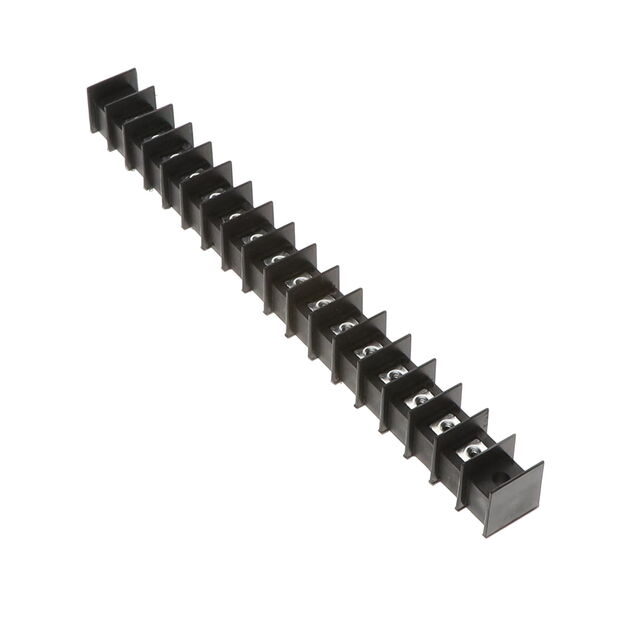

Curtis Industries 430005-16-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)	16	20 A	0.438 in	11.12 mm	1	Closed	Flange	16	600 V
Curtis Industries 430005-07-0	Polypropylene (PP)	105 C	Chassis Panel	UL94 V-0	2 Wall (Dual)	22 AWG	12 AWG	Barrier Block	Screws (Not Included)		20 A	0.438 in	11.12 mm	1	Closed	Flange	7	600 V	7
