SRS-4 Series
Manufacturer: Bivar Inc.
Beta
⌘K

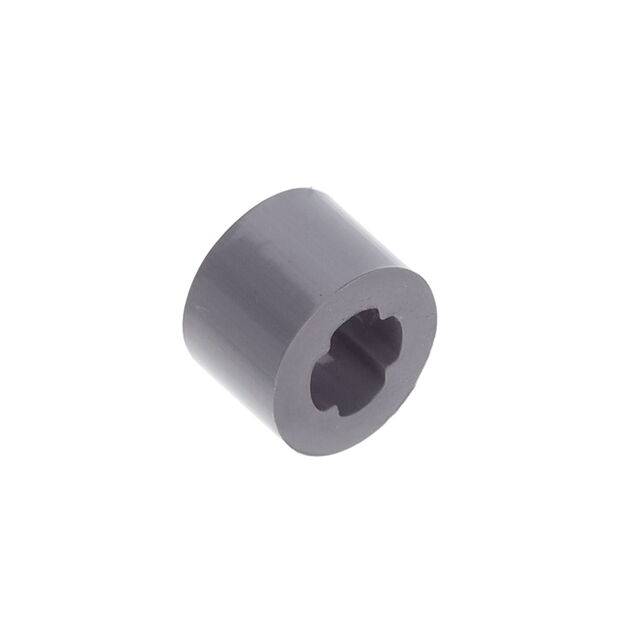

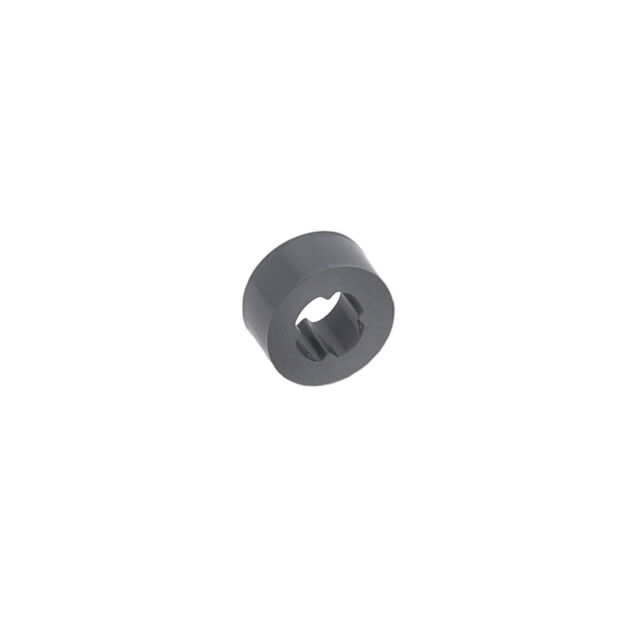

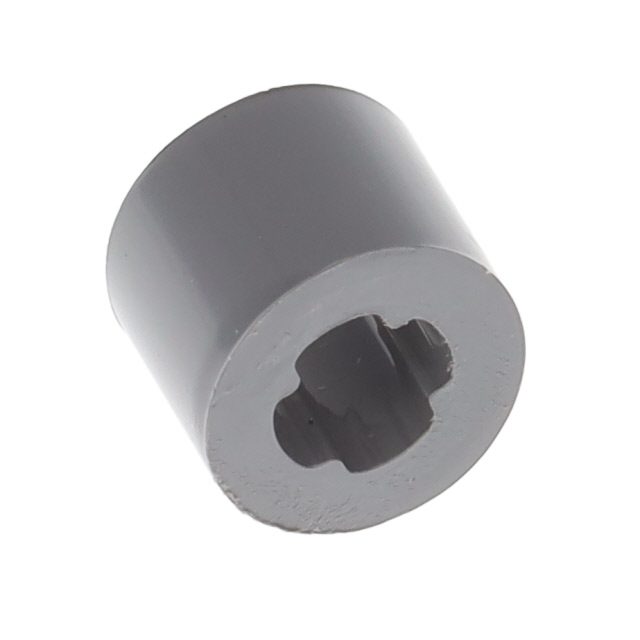

SELF RETAINING PVC SCREW SPACER, 0.380 IN. LENGTH, 0.25 OD, 0.144 ID, M3 SCREW SIZE, GREY / BAG
| Part | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Screw, Thread Size | Length - Overall [x] | Length - Overall [x] | Between Board Height [z] | Between Board Height | Color | Gender | Material | Threaded/Unthreaded | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Type | Features | Between Board Height | Between Board Height [z] | Length - Overall | Length - Overall | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 9.65 mm | 0.38 in | 0.38 " | 9.65 mm | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | ||||||
Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 7.87 mm | 0.31 in | 7.87 mm | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 0.31 in | ||||||
Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 22 mm | 0.866 in | 22 mm | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 0.866 in | ||||||
Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 3.94 mm | 0.155 in | 3.94 mm | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 0.155 in | ||||||
 Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 4.57 mm | 0.18 in | 4.57 mm | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 0.18 in | ||||||
Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 0.085 in | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 2.16 mm | 2.16 mm | 0.085 in | ||||||
 Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 3.05 mm | 0.12 in | 3.05 mm | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 0.12 in | ||||||
 Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 0.197 in | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 5 mm | 0.197 in | 5 mm | ||||||
Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 5.59 mm | 0.22 in | 5.59 mm | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 0.22 in | ||||||
Bivar Inc. | 2.87 mm 3.66 mm | 0.113 in 0.144 in | M3 | 30 mm | 1.181 in | 30 mm | Gray | Female Female | PVC | 6.35 mm | 0.25 " | 0.25 " | Round Spacer | Self Retaining | 1.181 in |
