102153 Series

Catalog

030 UNIV HDR SP 4S 15DP STD ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows [custom]	Termination	Contact Finish - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Style	Overall Contact Length	Overall Contact Length	Connector Type	Current Rating (Amps)	Mounting Type	Contact Length - Post [custom]	Contact Length - Post	Features	Contact Type	Number of Positions Loaded	Fastening Type	Material Flammability Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

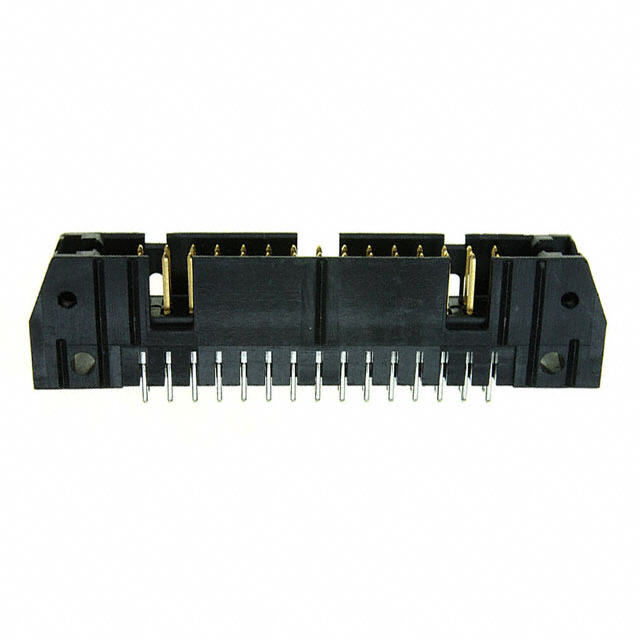

TE Connectivity AMP Connectors 102153-7	2.54 µm	100 µin	Square	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	0.24 in	6.1 mm	2	Solder	Tin-Lead	Gold or Gold-Palladium	0.549 in	13.94 mm	-55 C	105 ░C	Shrouded - 4 Wall	Board to Cable/Wire	0.639 in	16.23 mm	Header	1 A	Through Hole	0.11 in	2.79 mm	Mounting Flange	Male Pin	All	Push-Pull	UL94 V-0	30	0.38 µm	15 µin
TE Connectivity AMP Connectors 1-102153-1	2.54 µm	100 µin	Square	Black	0.1 "	2.54 mm	0.1 in	2.54 mm	0.24 in	6.1 mm	2	Solder	Tin-Lead	Gold or Gold-Palladium	0.549 in	13.94 mm	-55 C	105 ░C	Shrouded - 4 Wall	Board to Cable/Wire	0.639 in	16.23 mm	Header	1 A	Through Hole	0.11 in	2.79 mm	Mounting Flange	Male Pin	All	Push-Pull	UL94 V-0	60	0.38 µm	15 µin
