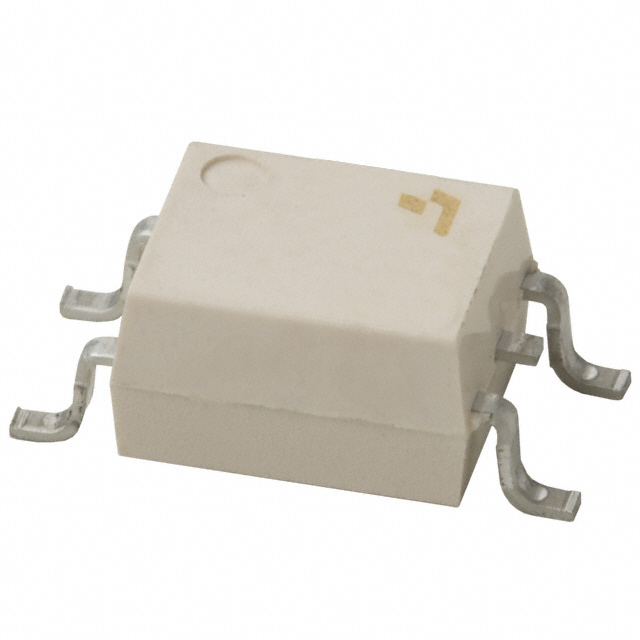

TLP417 Series
Photorelays (MOSFET Output), 1b, 60 V/0.5 A Photorelay, 1500 Vrms, 2.54SOP4
Manufacturer: Toshiba Semiconductor and Storage
Catalog
Photorelays (MOSFET Output), 1b, 60 V/0.5 A Photorelay, 1500 Vrms, 2.54SOP4
Beta
⌘K
Photorelays (MOSFET Output), 1b, 60 V/0.5 A Photorelay, 1500 Vrms, 2.54SOP4
Photorelays (MOSFET Output), 1b, 60 V/0.5 A Photorelay, 1500 Vrms, 2.54SOP4
Photorelays (MOSFET Output), 1b, 60 V/0.5 A Photorelay, 1500 Vrms, 2.54SOP4
| Part | Circuit | Package / Case | Load Current | On-State Resistance (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input | Supplier Device Package | Output Type | Mounting Type | Voltage - Load [Max] | Voltage - Load [Min] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | SPST-NC (1 Form B) | 4-SMD Gull Wing | 500 mA | 2.5 Ohms | -40 C | 105 ░C | 1.15 V | 4-SOP | AC DC | Surface Mount | 60 V | 0 V | Gull Wing |
 Toshiba Semiconductor and Storage | SPST-NC (1 Form B) | 4-SMD Gull Wing | 500 mA | 2.5 Ohms | -40 C | 105 ░C | 1.15 V | 4-SOP | AC DC | Surface Mount | 60 V | 0 V | Gull Wing |
