SFV11R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

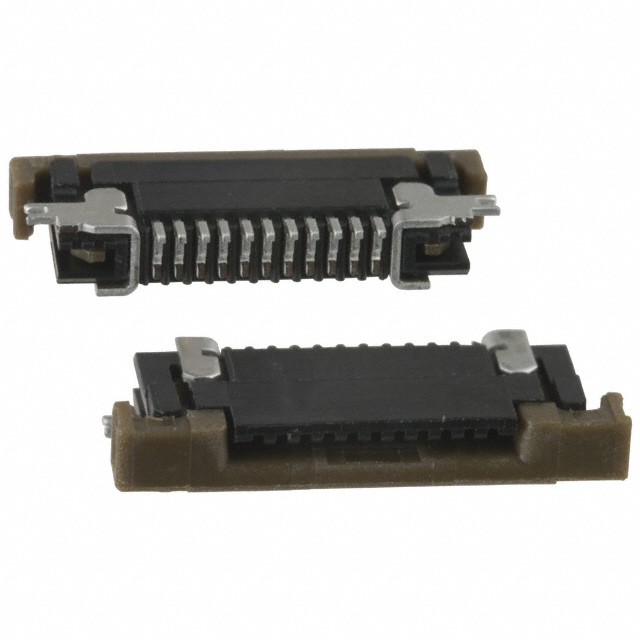

CONN FFC FPC TOP 11POS 0.5MM R/A
| Part | Current Rating (Amps) | Housing Color | Actuator Color | Connector/Contact Type | Termination | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Cable End Type | Housing Material | Actuator Material | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Mounting Type | Material Flammability Rating | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | Contact Finish | Contact Material | Locking Feature | Voltage Rating | Pitch | Pitch | Mating Cycles | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 0.5 A | Black | Brown | Contacts Top | Solder | Solder Retention Zero Insertion Force (ZIF) | -55 C | 105 ░C | 11 | Straight Tapered | Glass Filled Nylon Polyamide (PA) | Polyphenylene Sulfide (PPS) Glass Filled | 0.3 mm | 0.33 mm | Right Angle Surface Mount | UL94 V-0 | FFC FPC | 0.071 in | 1.8 mm | Tin | Phosphor Bronze | Slide Lock | 50 V | 0.02 " | 0.5 mm | ||
 Amphenol ICC (FCI) | 0.5 A | Black | Black | Contacts Bottom | Solder | -55 C | 105 ░C | 11 | Tapered | Glass Filled Halogen Free Nylon Polyamide (PA) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Right Angle Surface Mount | UL94 V-0 | FFC FPC | 0.071 in | 1.8 mm | Gold | Phosphor Bronze | Slide Lock | 50 V | 0.02 " | 0.5 mm | 20 | 0.3 mm | |||
 Amphenol ICC (FCI) | 0.5 A | Black | Black | Contacts Top | Solder | -55 C | 105 ░C | 11 | Straight Tapered | Glass Filled Halogen Free Nylon Polyamide (PA) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.3 mm | 0.33 mm | Right Angle Surface Mount | UL94 V-0 | FPC | 0.071 in | 1.8 mm | Tin | Phosphor Bronze | Slide Lock | 50 V | 0.02 " | 0.5 mm | 20 | ||
 Amphenol ICC (FCI) | 0.5 A | Black | Black | Contacts Top | Solder | Solder Retention Zero Insertion Force (ZIF) | -55 C | 105 ░C | 11 | Straight Tapered | Glass Filled Halogen Free Nylon Polyamide (PA) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.3 mm | 0.33 mm | Right Angle Surface Mount | UL94 V-0 | FFC FPC | 0.071 in | 1.8 mm | Gold | Phosphor Bronze | Slide Lock | 50 V | 0.02 " | 0.5 mm | 20 |
