09370480 Series
Manufacturer: HARTING
Beta
⌘K

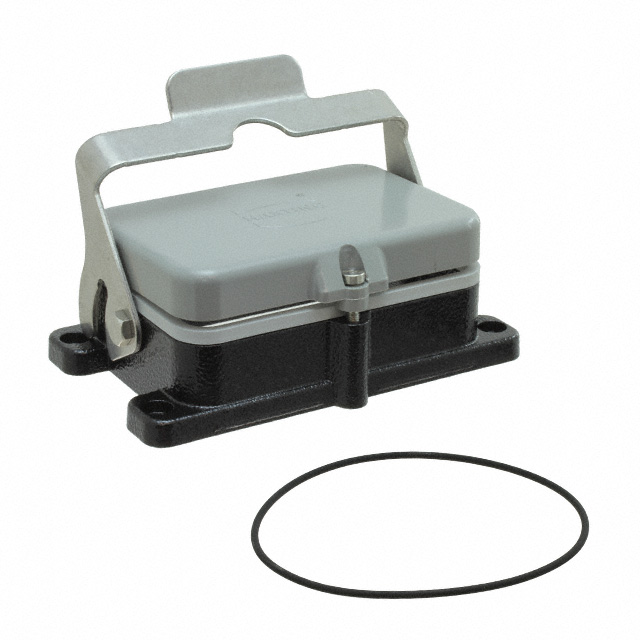

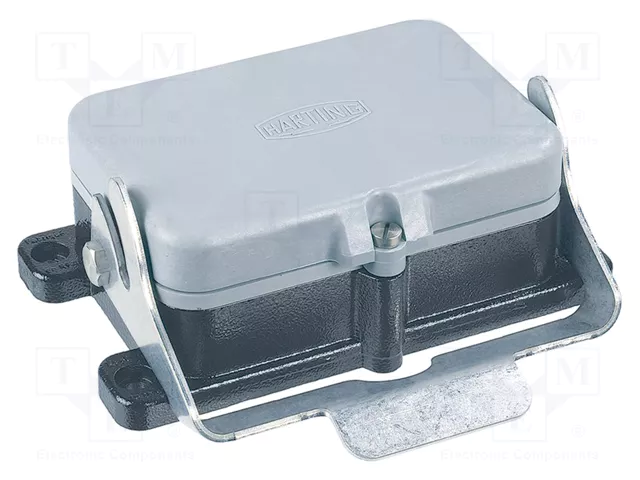

ENCLOSURE FOR CONNECTORS: HDC; SIZE 48B (2 X 24B); HAN® M; IP65
| Part | Housing Color | Style | Operating Temperature [Max] | Operating Temperature [Min] | Features | Size | Housing Material | Connector Type | Lock Location | Ingress Protection | Housing Finish | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Black | Bottom Entry | 125 °C | -40 C | Cover | 48 B | Aluminum Die Cast | Base - Panel Mount | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Powder Coated | 3.78 in | 1.575 in | 40 mm | 165 mm | 96 mm | 6.496 " | |
 HARTING | Top Entry | 48 B | Hood | Locking Clip (1) on Base Bottom | 3.543 " | 3.839 " | 97.5 mm | 132 mm | 90 mm | 5.197 " | PG48 |
