Headers & Wire Housings .100" Shrouded Terminal Strip
Headers & Wire Housings .100" Shrouded Terminal Strip
| Part | Features | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Material | Number of Positions Loaded | Fastening Type | Contact Type | Insulation Height [custom] | Insulation Height [custom] | Contact Length - Post | Contact Length - Post | Style | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Overall Contact Length | Overall Contact Length | Number of Positions | Connector Type | Shrouding | Contact Shape | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

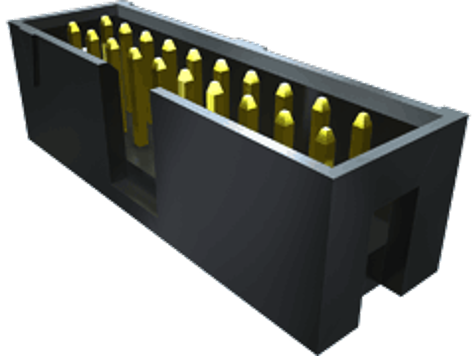

 Samtec Inc. | Keying Slot | Gold | -55 °C | 125 °C | Gold | Phosphor Bronze | All | Push-Pull | Male Pin | 0.35 in | 8.89 mm | 2.92 mm | 0.115 in | Board to Board Cable | 6.35 mm | 0.25 in | UL94 V-0 | Through Hole | 10 çin | 0.25 çm | Black | 0.48 in | 12.19 mm | 70 | Header | Shrouded - 4 Wall | Square | Solder | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | 2 | 3 µin | 0.076 µm | Polybutylene Terephthalate (PBT) |
